Product catalogue

140 references across 10 brands. Search by part number, rating or product type — then send us the reference on WhatsApp for pricing and availability.

140 products

Sofamel — Insulating Gloves

30201 SG
Sofamel

30201 SG

Dielectric gloves The natural latex base provides excellent dielectric properties. The greater the glove thickness, the higher its electrical resistance. The ergonomic design enhances comfort, offering superior softness and flexibility, and makes both donning and removal easier. Insulating gloves are considered one of the most important items of personal protective equipment for electrical work. They form the first line of defence against contact with live components or energised conductors. Recommended for work in electricity generation, transmission, transformation, and distribution, as well as in the railway, telecommunications, construction, industrial maintenance, photovoltaic panel, and hybrid vehicle battery sectors, among others. RECOMMENDATIONS Depending on the task, it is advisable to use the insulating latex gloves together with appropriate leather over-gloves to provide additional mechanical protection against abrasion, cutting, tearing, and punctures. MECHANICAL AND THERMAL REQUIREMENTS IEC 60903 | EN 60903 The natural latex glove is available in beige.

30202 SGM
Sofamel

30202 SGM

Composite insulated gloves Composite insulating gloves provide electrical, mechanical, and arc-flash protection; therefore, it is not necessary to use them in combination with a separate mechanical protective over-glove. The Composite glove range is made using a natural latex base coated with an outer layer of polychloroprene, combining mechanical resistance and comfort with a high level of electrical protection. Arc-flash protection: the glove is manufactured from a material that provides a high level of protection against arc flash. 3 in 1 MECHANICAL AND THERMAL REQUIREMENTS Complementary test and performance levels to be achieved are as follows: IEC 60903 | IEC 61482-1-2 Red external finish with beige internal finish.

30201 SGC COMFORT
Sofamel

30201 SGC COMFORT

Ultra-thin insulating gloves Ultra-thin, high-sensitivity insulating glove (Class 0) The new SGC Comfort glove combines exceptional tactile sensitivity with full Class 0 electrical protection, while also maintaining excellent mechanical resistance. Its special formulation of high-purity natural latex allows for a reduced thickness without compromising safety, providing a soft, precise, and highly flexible feel. The ergonomic design significantly enhances user comfort, making donning and removal easy—even during prolonged tasks. Thanks to its high sensitivity, it is ideal for operations that require great precision and the handling of small components. The SGC Comfort model is certified according to EN 388 with the following levels: This mechanical protection makes it an excellent choice for environments where precision tasks are combined with the risk of friction or minor mechanical impacts. RECOMMENDED APPLICATIONS Maintenance and repair of electric and hybrid vehicles (EV/HEV) Assembly, inspection, and handling in photovoltaic installation Work in control centres and electrical panels Low-voltage operations with delicate components Diagnostic, adjustment, and fine-connection tasks Industrial applications requiring maximum tactile sensitivity Manufactured and tested according to IEC 60903 and EN 60903, the SGC Comfort model guarantees the highest level of Class 0 protection with superior comfort in every use. The natural latex glove is available in green.

Sofamel — Dielectric Boots & Overboots

Sofamel — Insulating Mats

Sofamel — Voltage Detectors

31006 D-TUERI PRO 7.9/69 kV
Sofamel

31006 D-TUERI PRO 7.9/69 kV

Personal voltage detector - Medium & High voltage- Optical & Acoustic Omni-directional personal electric field detector. Additional individual safety device designed for personnel working in areas with electrical voltage, such as inspection tasks, cleaning operations, maintenance, and generally any work performed near live elements. When the user is close to an electric field between 7.9 kV – 69 kV and exceeds a distance of approximately 2 metres for 7.9 kV and 5 metres for 69 kV, the detector emits a signal. The signal's frequency increases as the user gets closer to the live point. The alarm does not stop sounding until you move away from the dangerous zone. The detector can be placed both INSIDE and OUTSIDE , depending on the characteristics and requirements of the helmet. 31006 D-TUERI PRO 7.9/69 kV Use in Distribution / Transformation centers and AC Airlines Supplied in an insulated box that includes the detector, a nylon carrying case, charger and USB cable.

31003 POWER LIGHT
Sofamel

31003 POWER LIGHT

Electronic voltage detector - Medium Voltage - Optical & Acoustic VOLTAGE RANGES from 1 to 5 kV or from 5 to 79 kV Lamp in the top part with high-brightness, low-consumption LEDs, for use in dark places. Lamp use is independent of the detection system. Voltage present indicator using multiple high-brightness red LEDs over 360° and buzzer-type intermittent acoustic signal. Absence of voltage indicator with multiple high-brightness green LEDs over 360º. Low battery indication by orange LED. Self-checking system for the full circuit by pressing the test button. Stops operating when the battery is low. Auto-start-up with voltage presence. Auto-power-down to standby after two minutes with absence of voltage. Power consumption is less than 1 µA in this mode. Indoor and outdoor use by means of insulating pole appropriate to the detector voltage range. Coupling to pole using Universal head. 2xAA high-capacity and high-durability batteries included. Supplied with metallic box with batteries included.

Sofamel — Measurement Instruments

31009 CTL-1000
Sofamel

31009 CTL-1000

Professional multimeter CTL-1000 with True RMS - Optical & Acoustic Digital AC/DC, T-RMS clamp meter with automatic and manual ranges and a VFD frequency converter. The CTL-1000 has a large 13 mm HD display with 6000 digits and a backlight for easy reading. It has functions for measuring AC and DC voltage, AC and DC current, resistance, capacitance, temperature, low impedance voltage, continuity and NCV (non-contact voltage detection). Technical information Measurement of actual/real values Non-contact voltage detection (NCV) Temperature measurements ℃/℉: -20 ~ 1000℃ / -4 ~ 1832℉ Continuity Test DCμA: 200 μA / VFD Clamp Ø: 40 mm LED lamp Memory Min / Max and peak values Low battery indicator Stores relative measurement data Backlight Supplied with a nylon case for transport and storage. According with standards EN61010-1, EN61010-2-033, EN61326, CAT Ⅲ 1000 V / CAT IV 600 V

31009 CIT-10
Sofamel

31009 CIT-10

Digital insulation tester - Digital It is used to measure the quality of electrical insulation in cables, motors, transformers, etc., both in new installations and during maintenance, for basic and specialized categories. It also detects direct voltage, alternating voltage, and performs continuity checks. Designed and manufactured in compliance with the safety requirements set by IEC61010-1 standards for electronic testing instruments. Technical information Automatic power off to save energy Data storage Timer function for insulation test Lock function for insulation test Supplied with a case for transport and storage. According with standards EN61010-1, EN61557-1, EN61326-1 CAT. Ⅲ 1000 V CAT. Ⅳ 600 V

Sofamel — Earthing Equipment

Sofamel — Cable Lugs & Connectors

Sofamel — Cord End Terminals

Sofamel — Insulated Terminals

Sofamel — Photovoltaic Connectors

Sofamel — Cable Cutters

Sofamel — Crimping Tools For Non Insulated Terminals

Sofamel — Crimping Tools For Cord End Terminals

Sofamel — Crimping Tools For Insulated Terminals

Sofamel — Crimping Tools For Solar Connectors

Sofamel — Stripping & Electrohydraulic Tools

20105 EPM-52
Sofamel

20105 EPM-52

Tool for stripping primary insulation Suitable for stripping the primary insulation layer of medium voltage cables. Offers precise adjustment of the cutting angle and an efficient stripping speed, adapting to different requirements. Can also be used to strip the outer jacket of various types of MV cables. The adjustable cutting angle allows for precise and safe operation. Compact, ideal for working in confined spaces. High-quality blades, robust and durable for long-term use. Includes a tool carrying case.

20202 EBC-13C
Sofamel

20202 EBC-13C

Electrohydraulic tools Battery-powered hydraulic crimping tool C-shaped head that rotates 180 degrees. 2-speed hydraulic system. Independently designed oil return system can safety react without electricity. The trigger switch and return button are separately and activated by only one hand. Built-in chip, with memory function, can stop automatically when crimping is completed, realize intelligent crimping. Crimping cycle data is automatically stored on a memory card for transfer to PC by USB interface or bluetooth. OLED display provides information on battery capacity, crimping cycles, and service cycles. Automatic retraction when the maximum pressure is reached. LED lightning for work in dark environments. Rubber grip to have low noise and minimal vibration. Include tool holder briefcase. Available dies HD13 copper and aluminium cable lugs and butt-connectors by hexagonal compression CD13 copper and aluminium compression clamps by circular compression Copper: main up to 185 mm² and tap up to 185 mm² Aluminium: main up to 300 mm² and tap up to 70 mm²

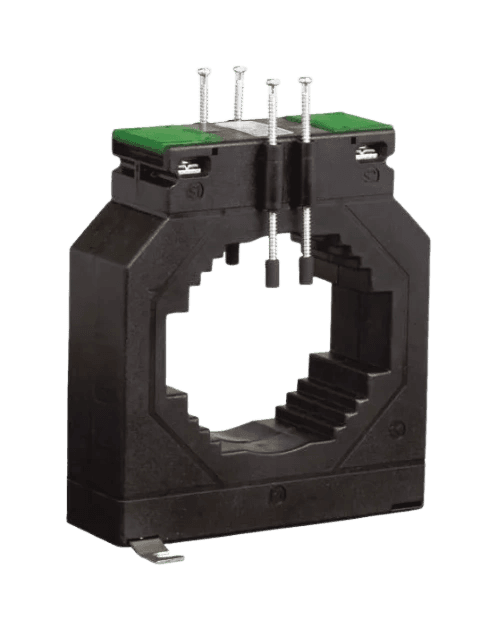

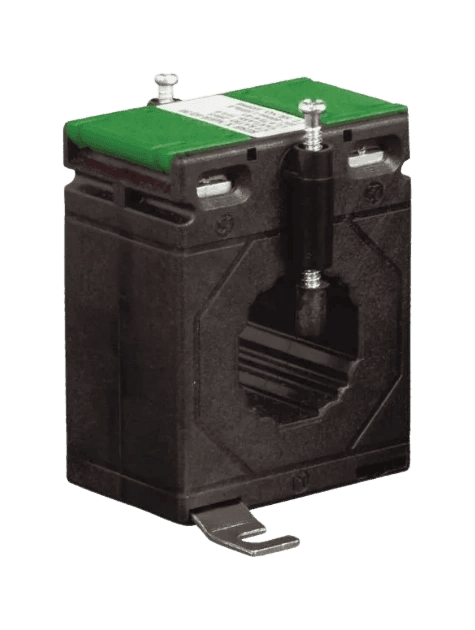

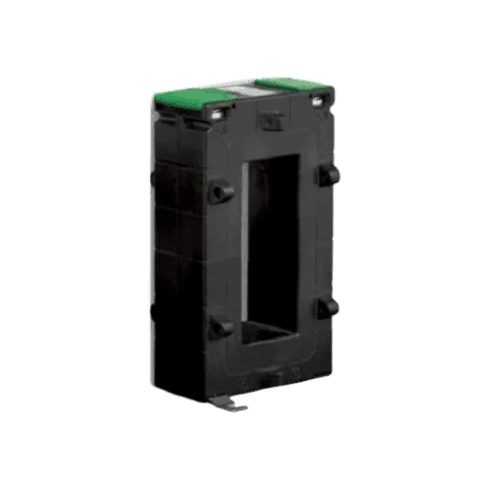

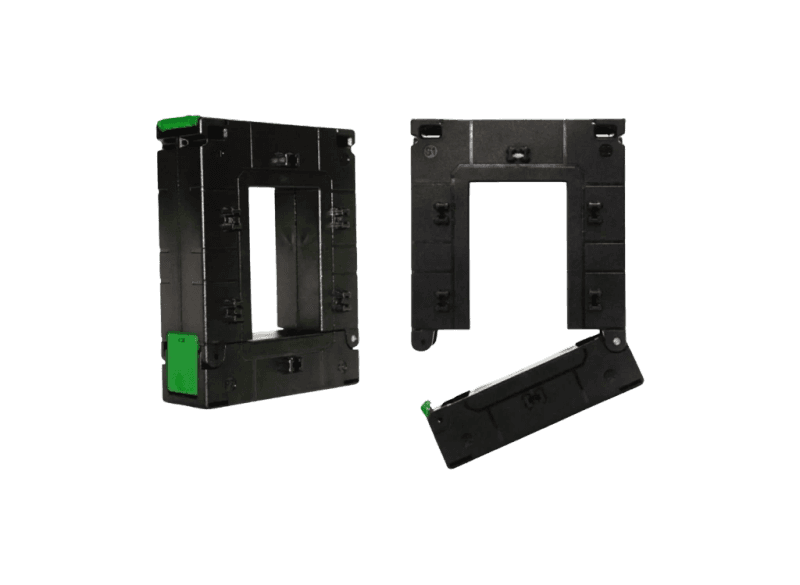

Lumel — Current Transformers

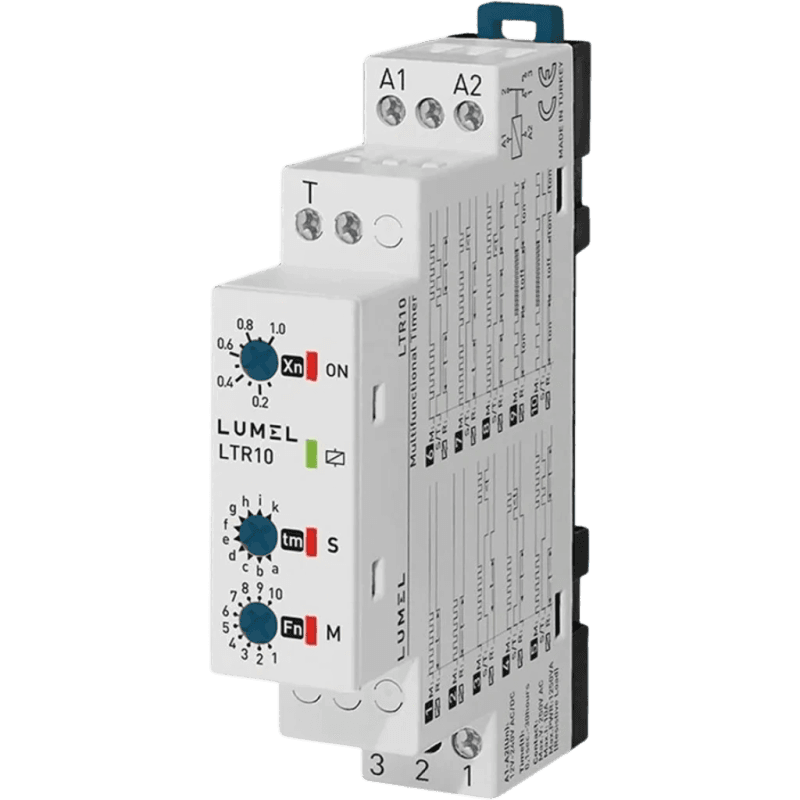

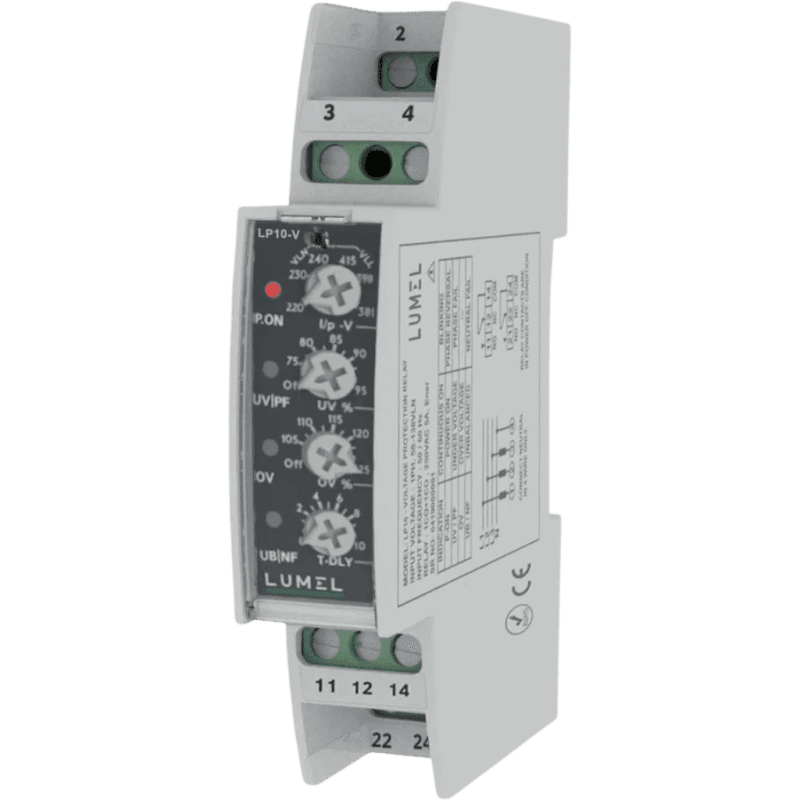

Lumel — Time and Protection Relays Control

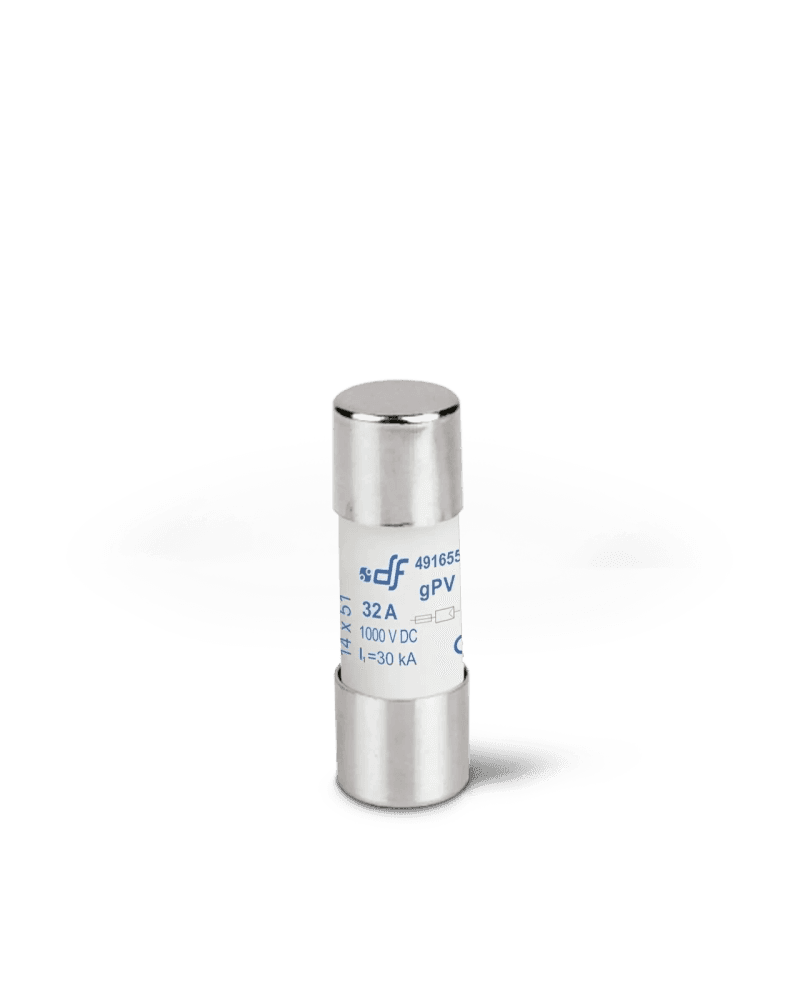

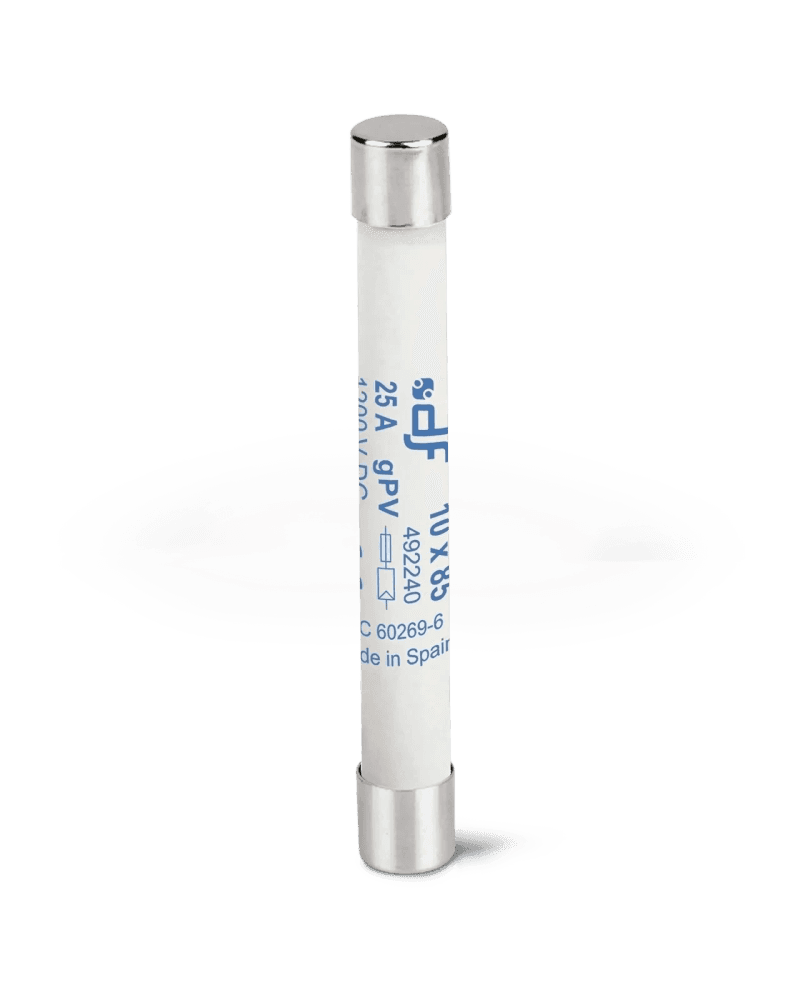

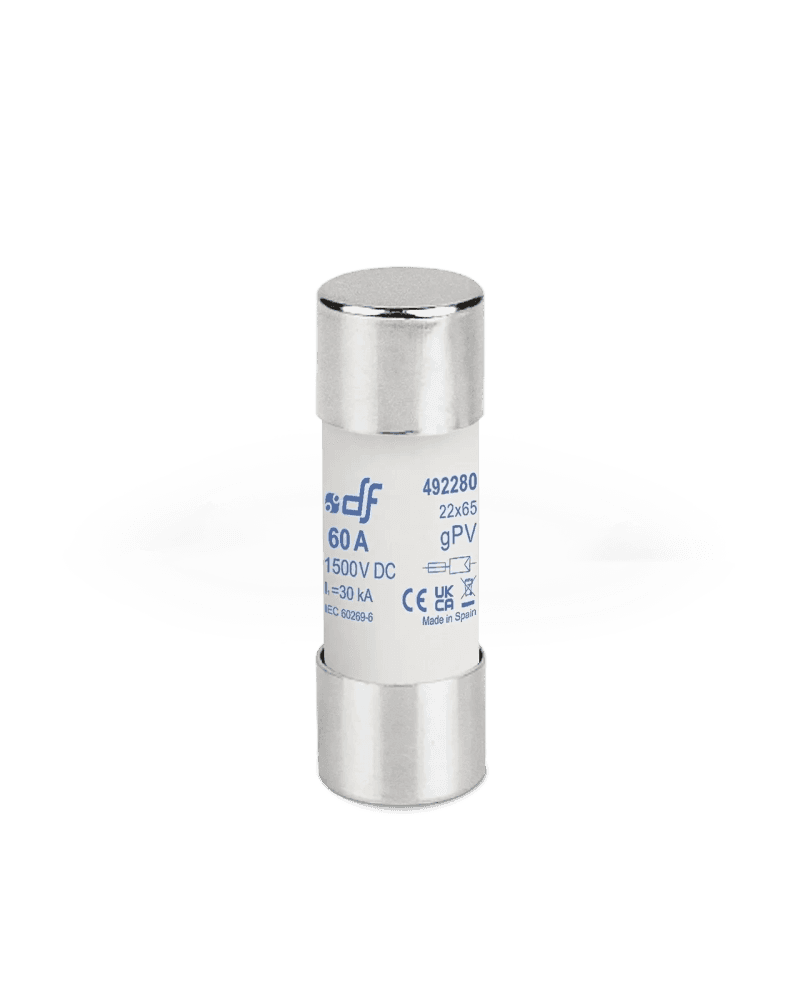

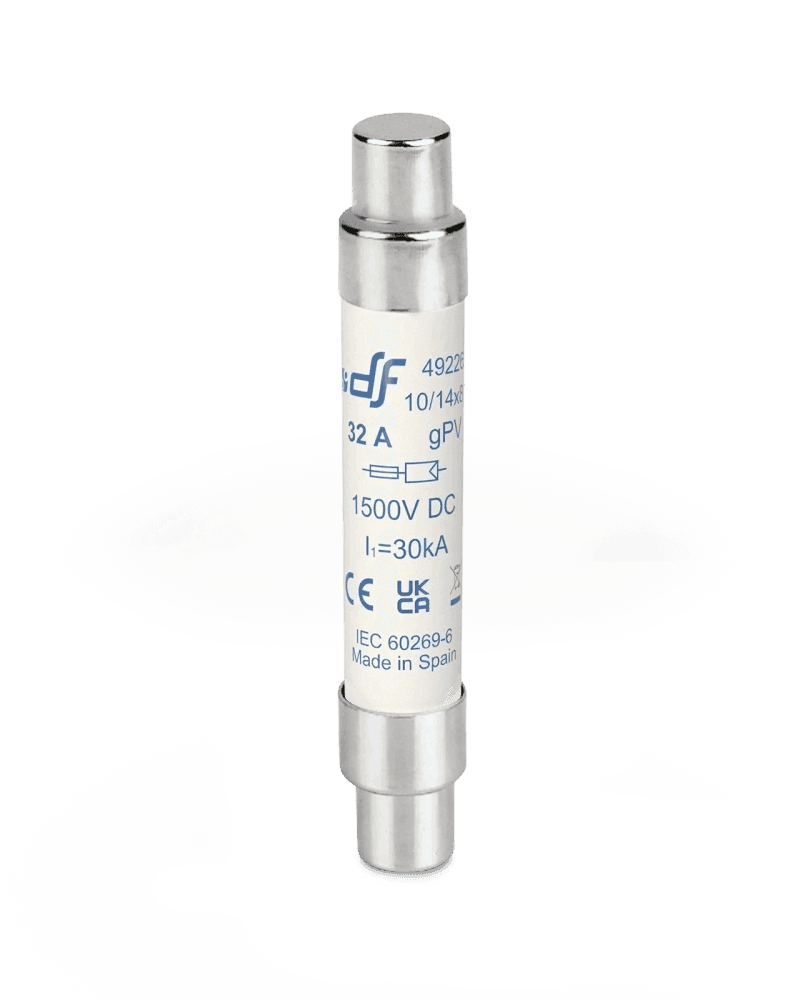

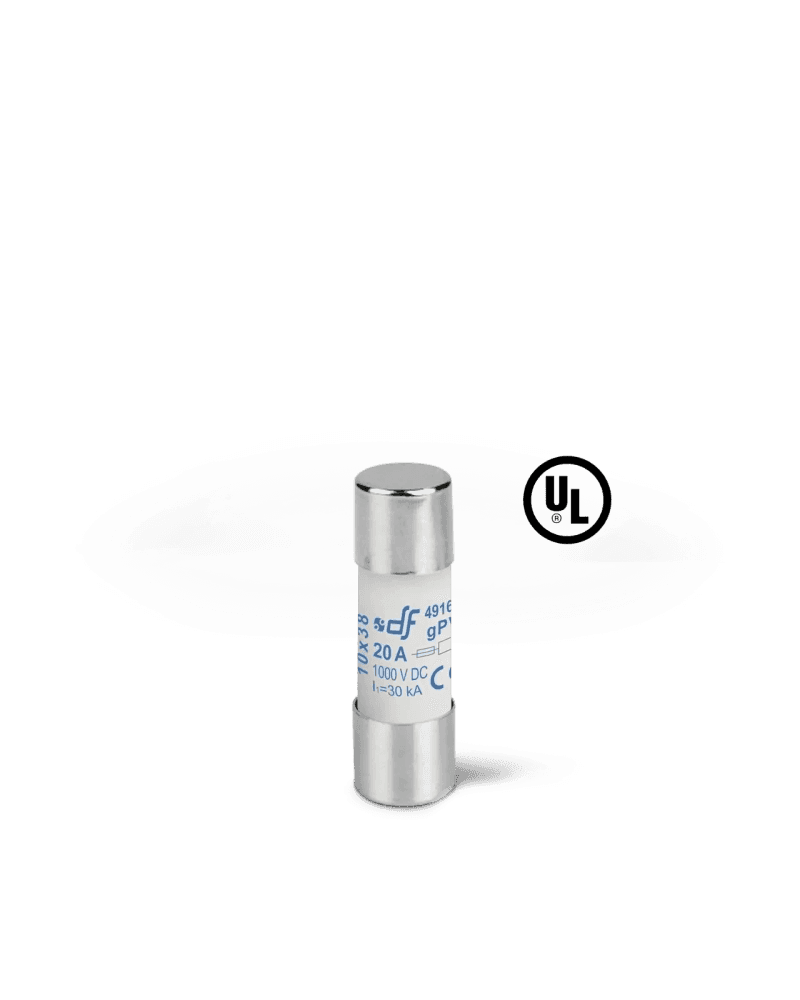

DF Electric — gPV Cylindrical Fuse Links

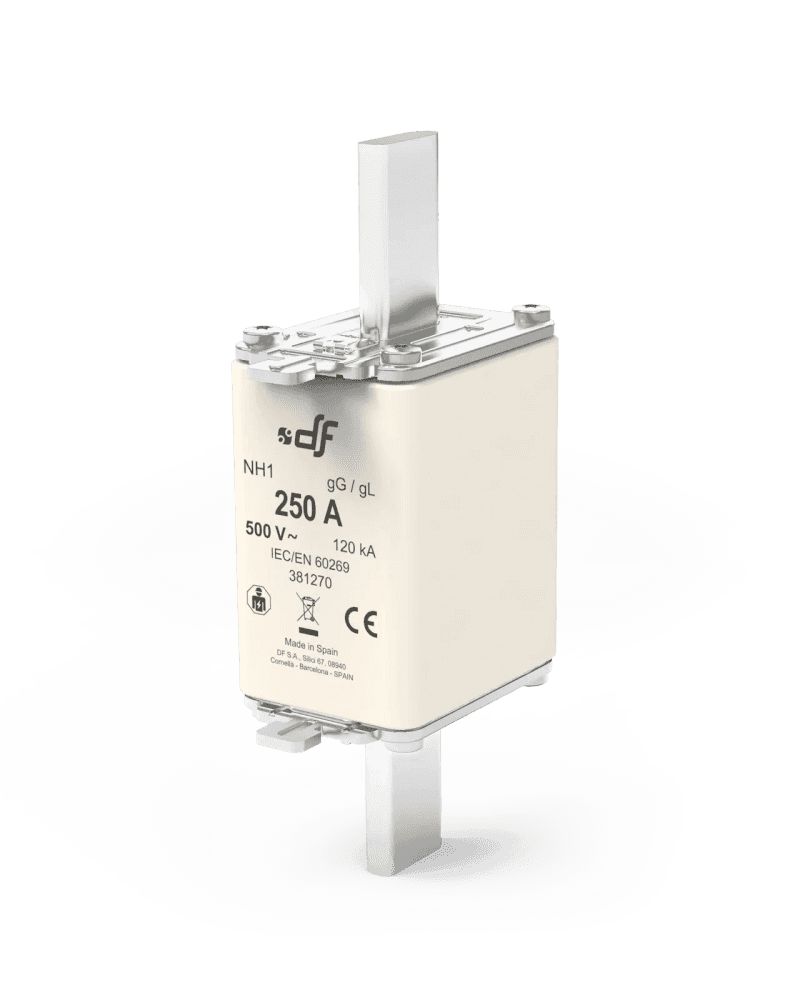

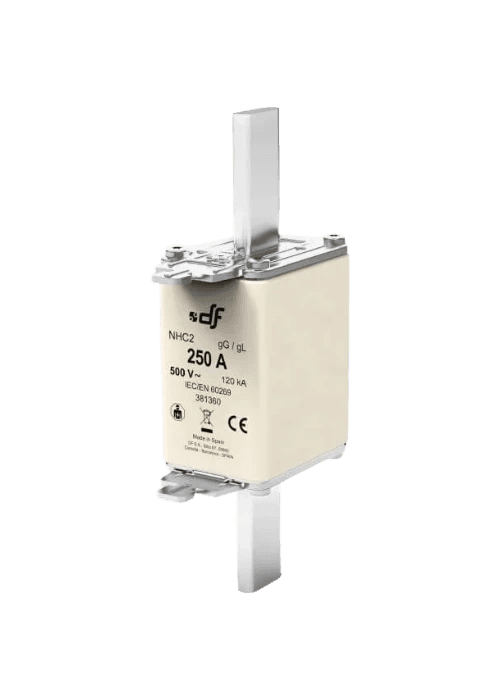

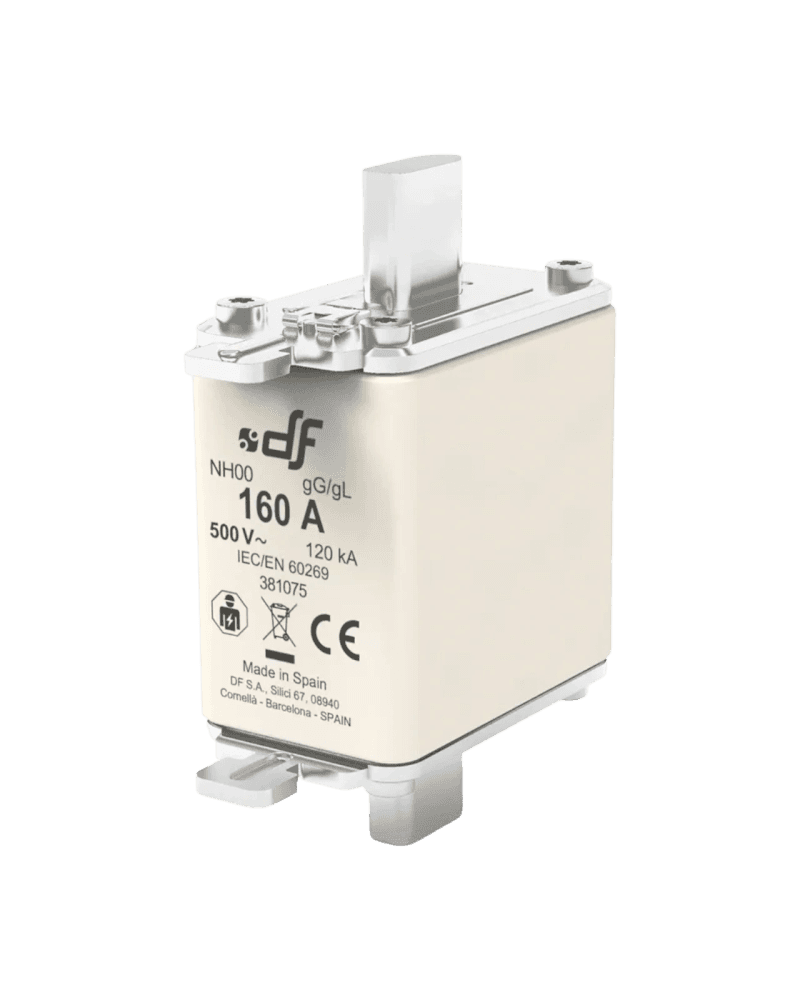

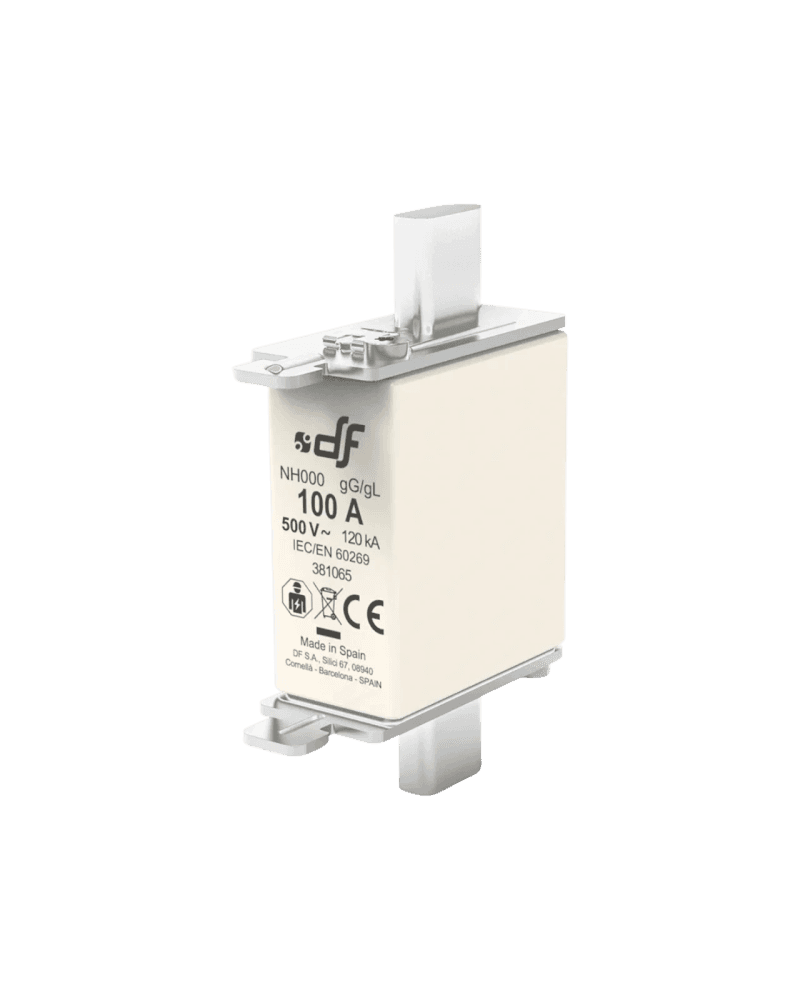

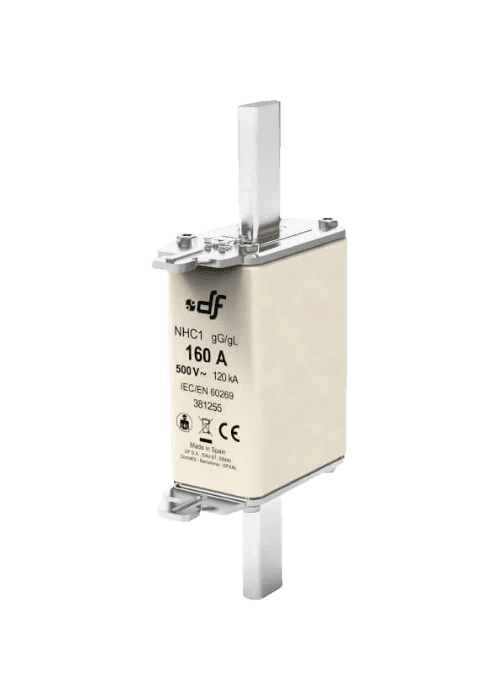

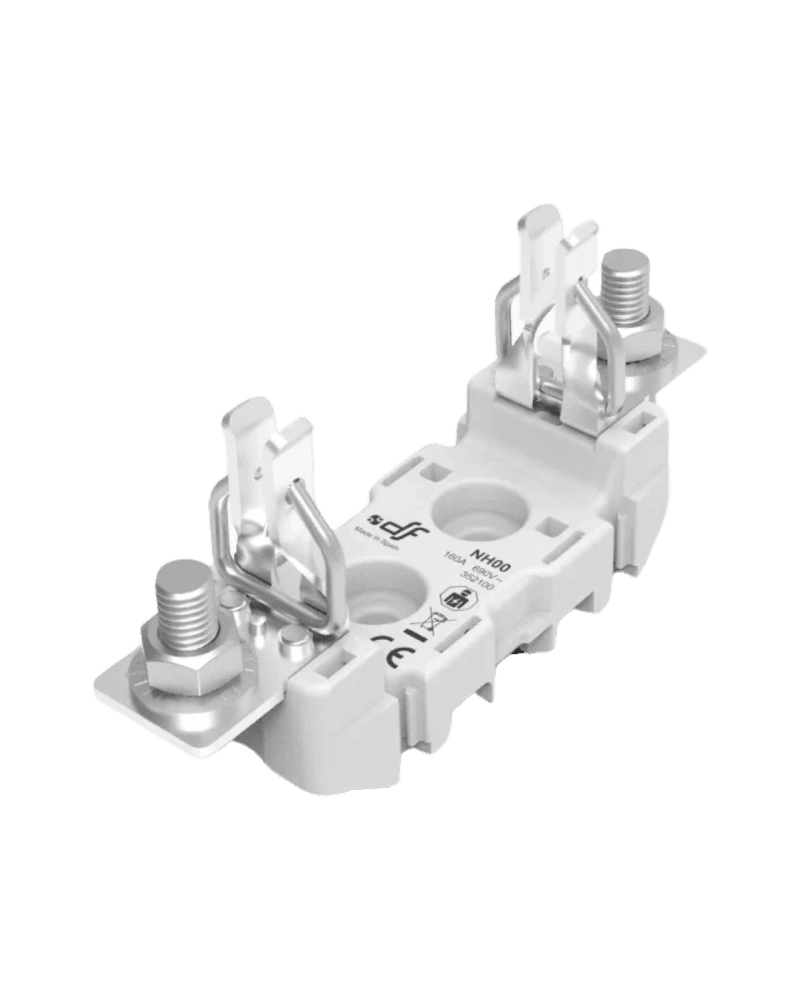

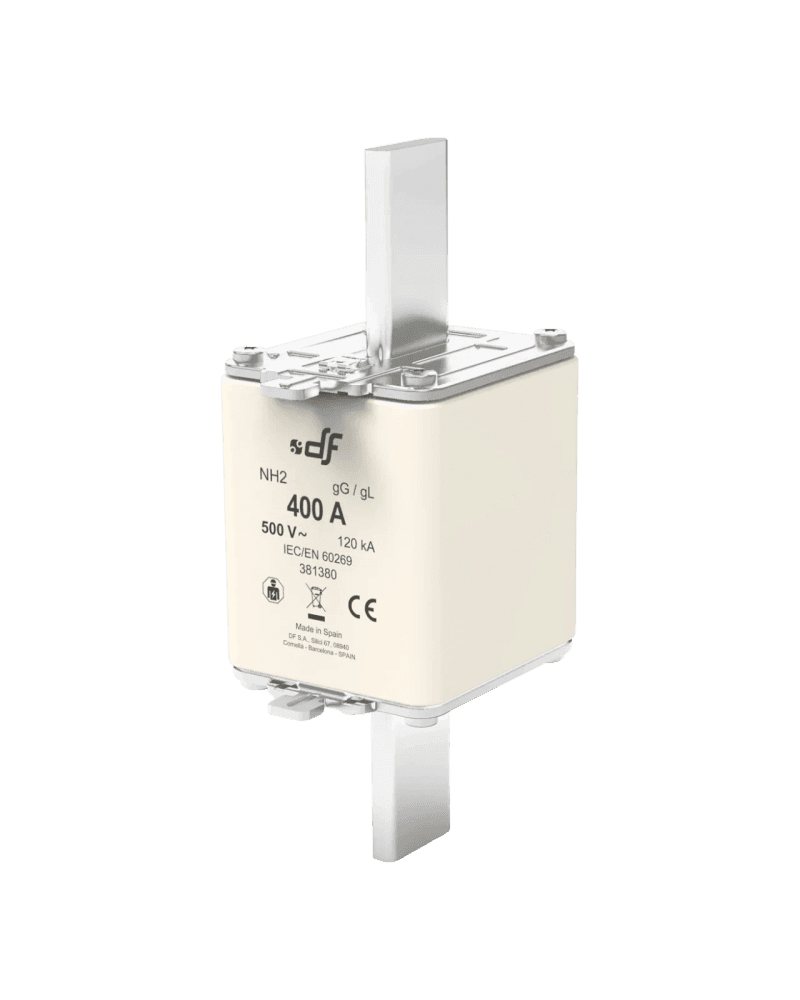

DF Electric — NH Knife-Blade

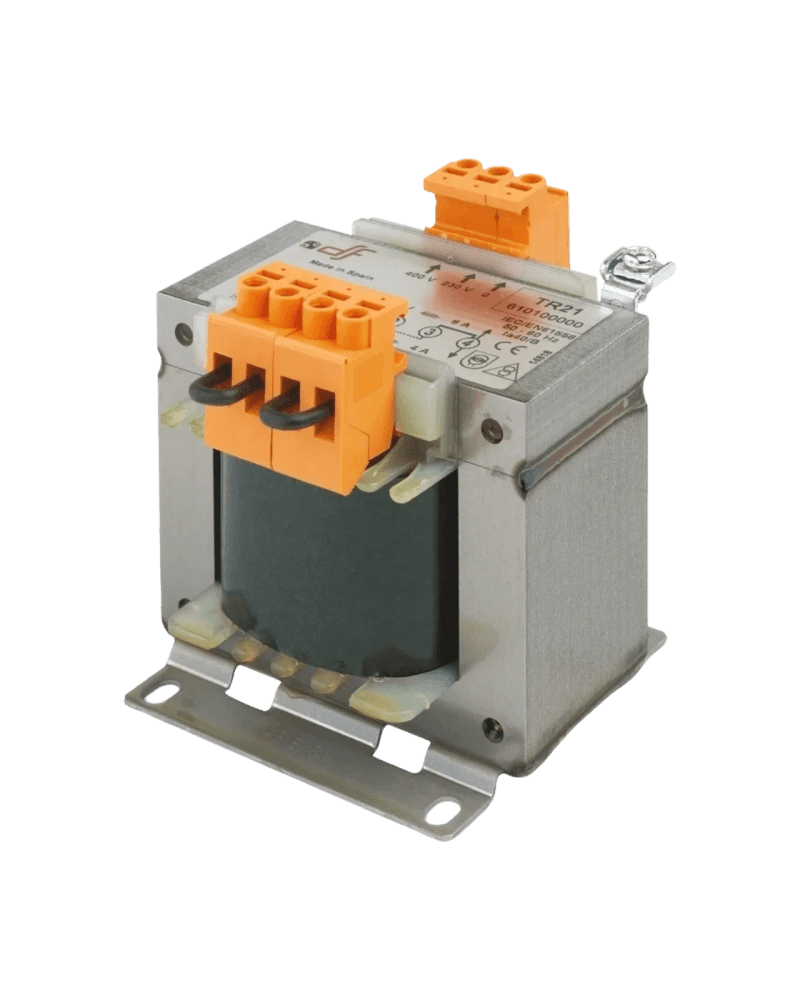

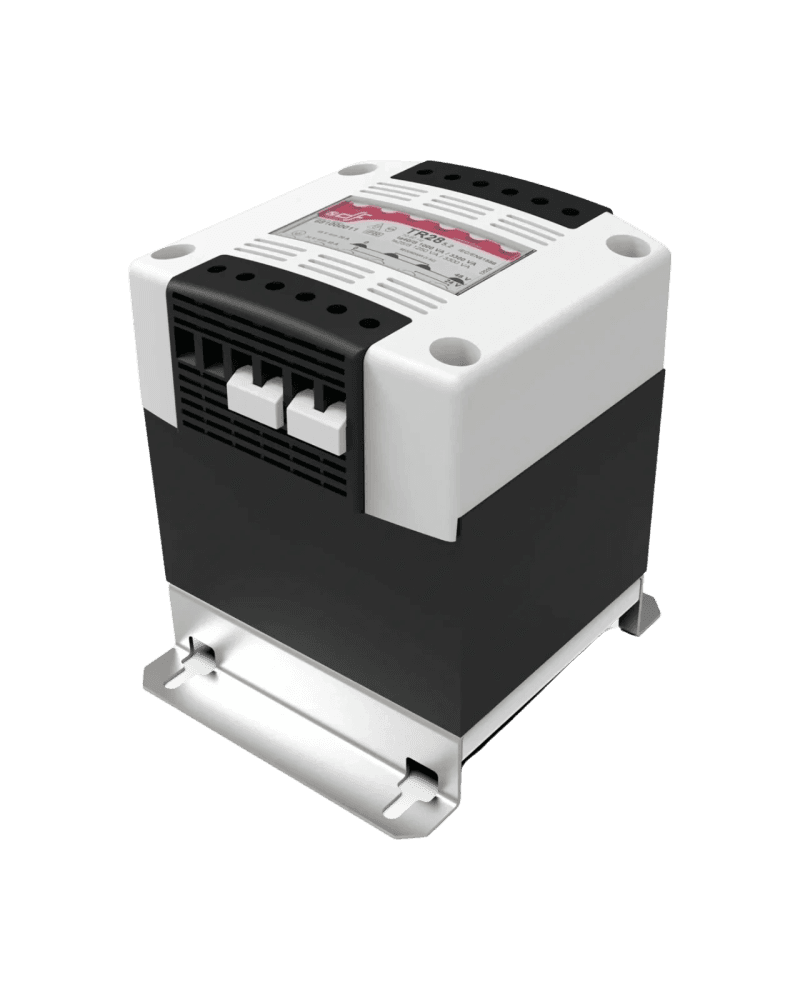

DF Electric — Transformers

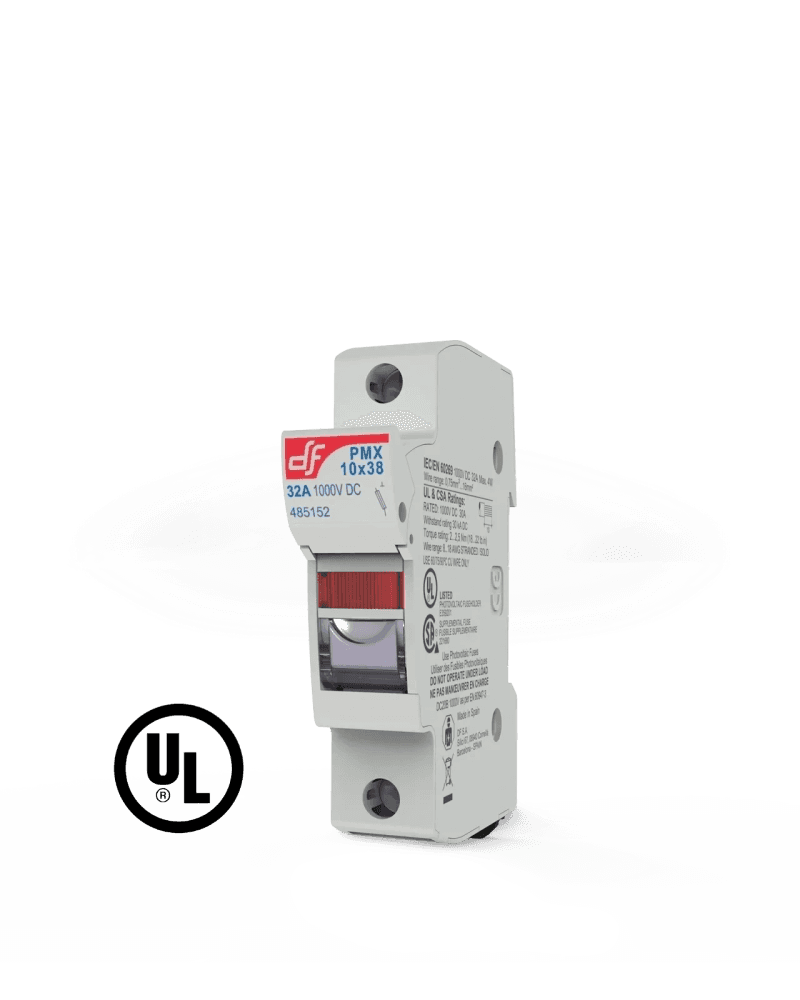

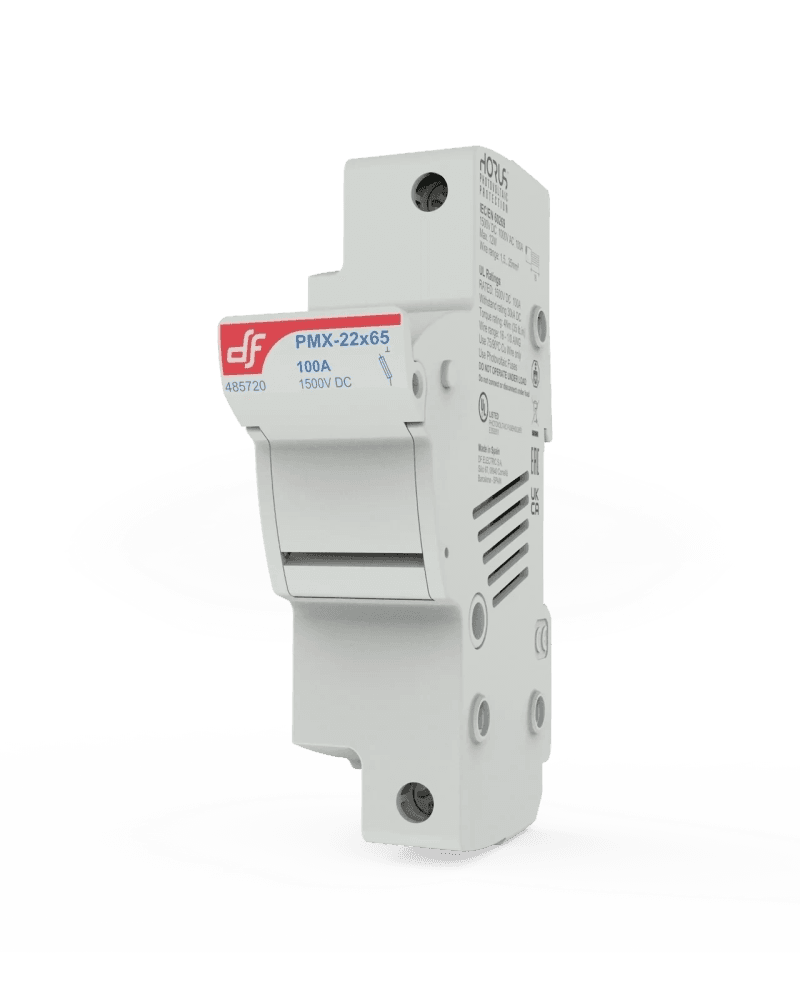

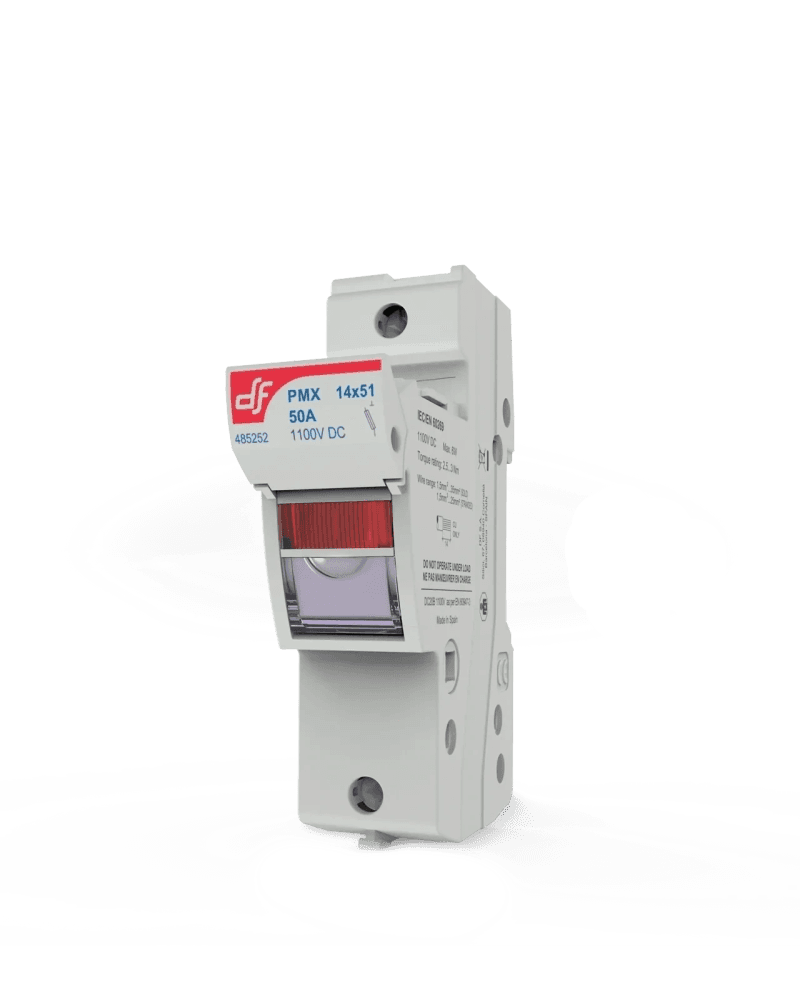

DF Electric — PMX Cylindrical Fuse Holders

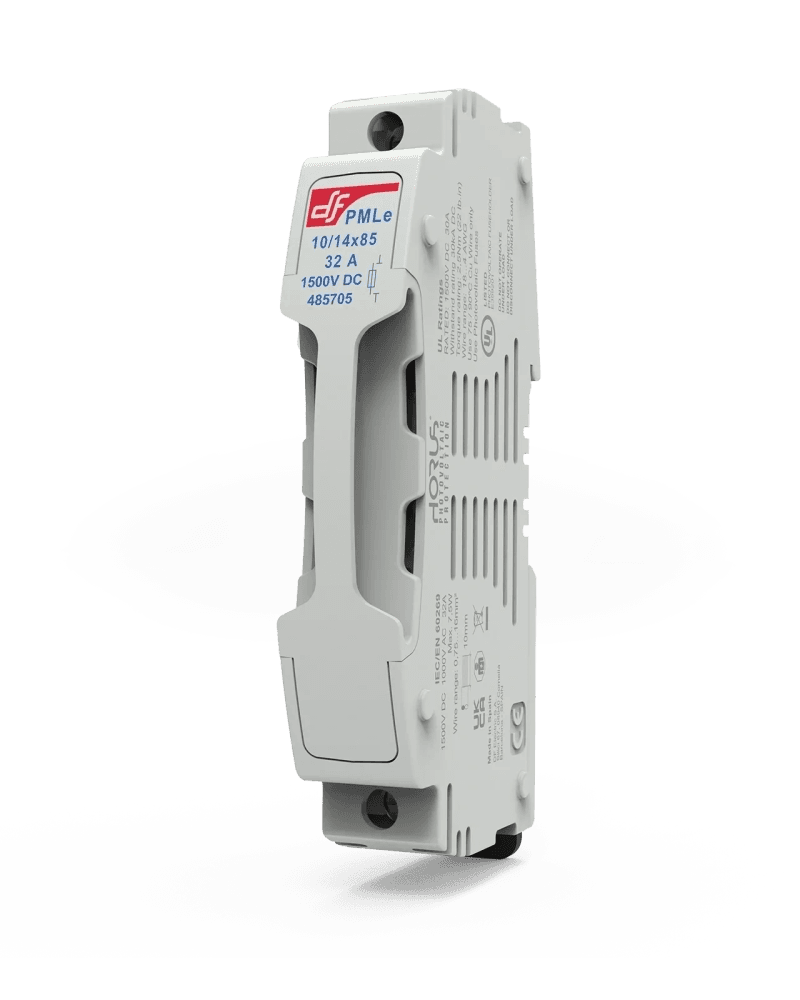

DF Electric — PML Cylindrical Fuse Holders

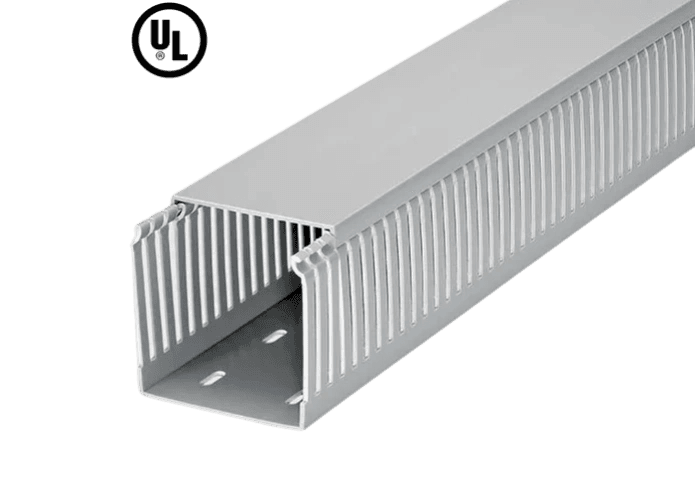

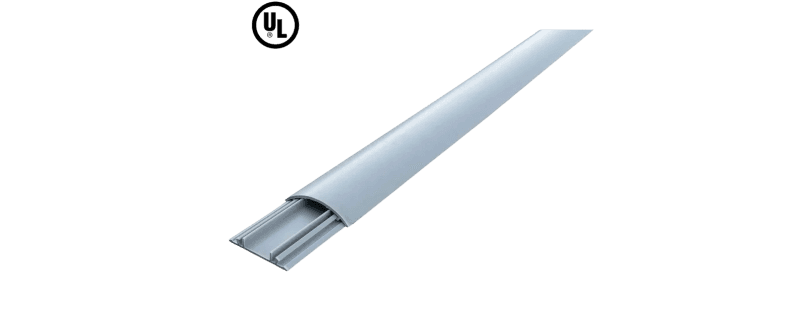

KSS — Wiring Ducts

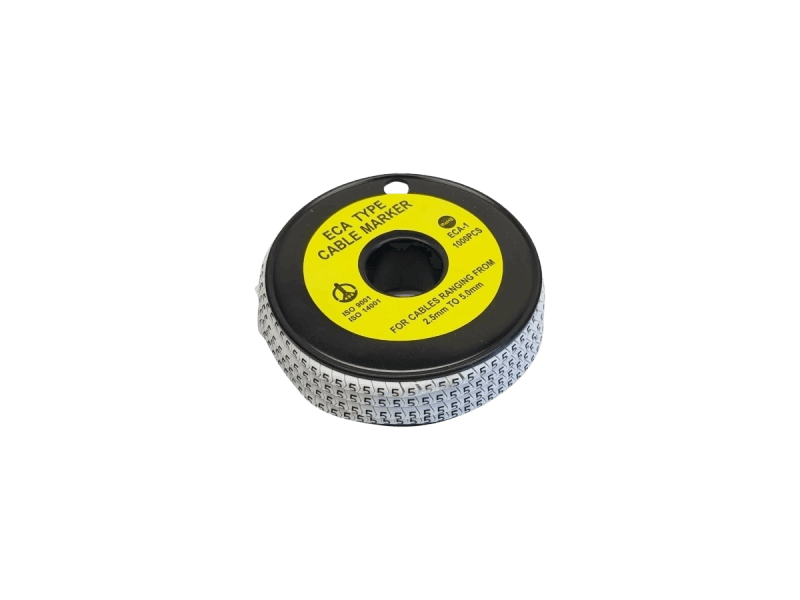

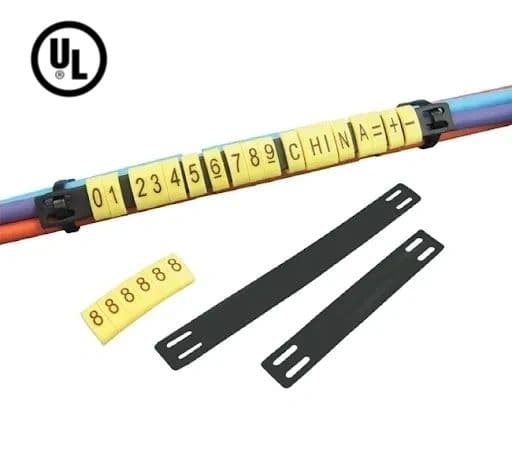

KSS — Cable Markers

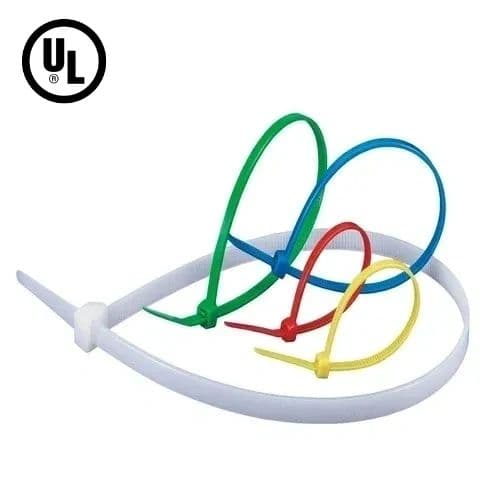

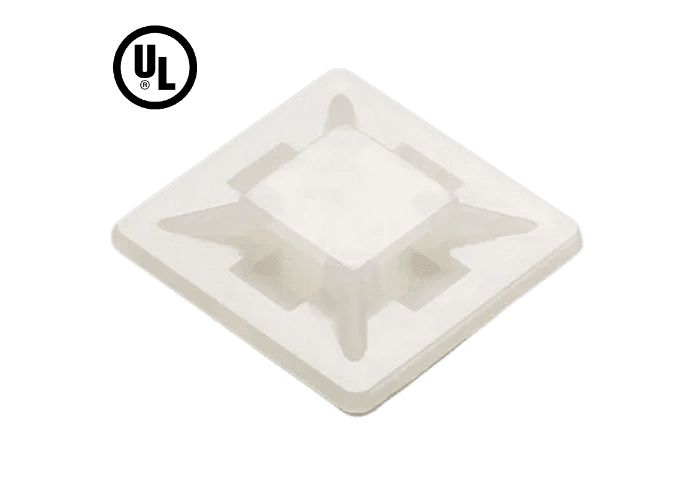

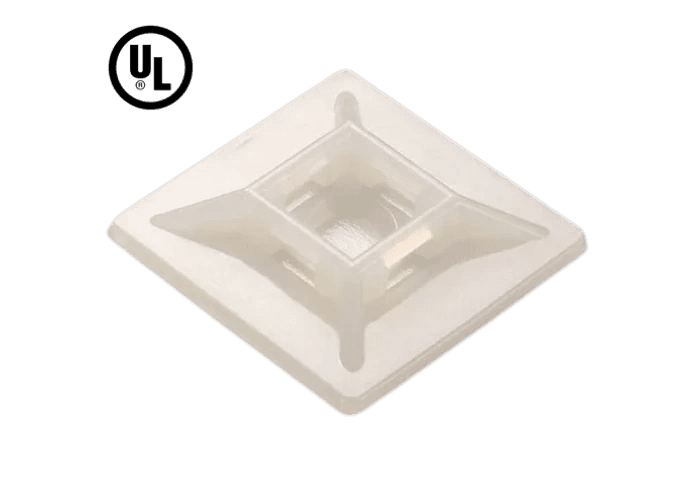

KSS — Cable Ties

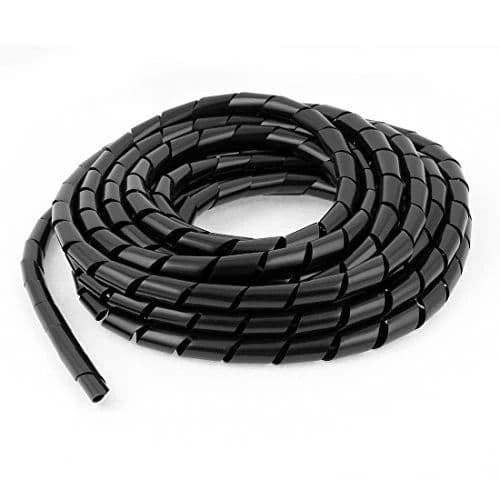

KSS — Wrapping Band

KSS — Cable Clamps

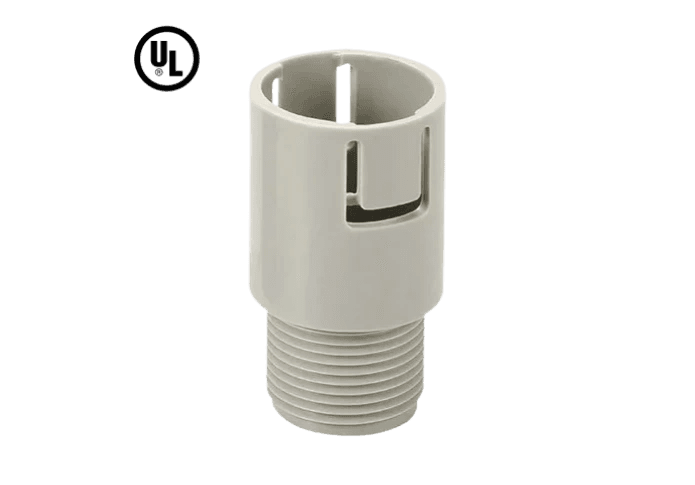

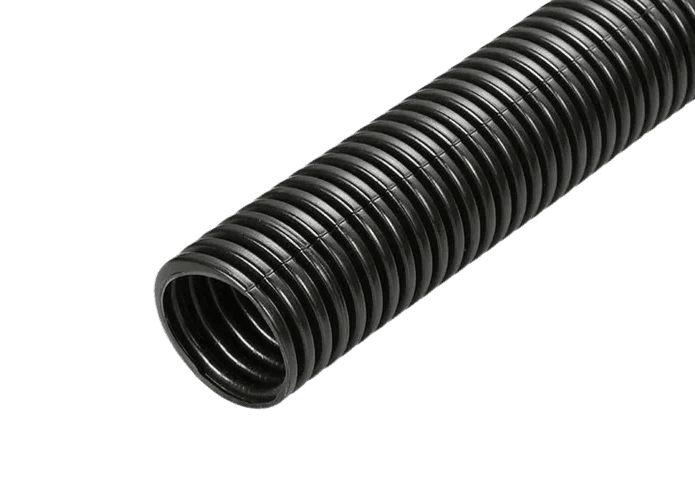

KSS — Bushings Conduits

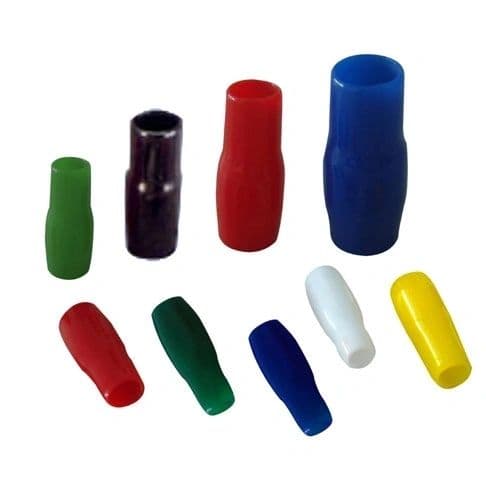

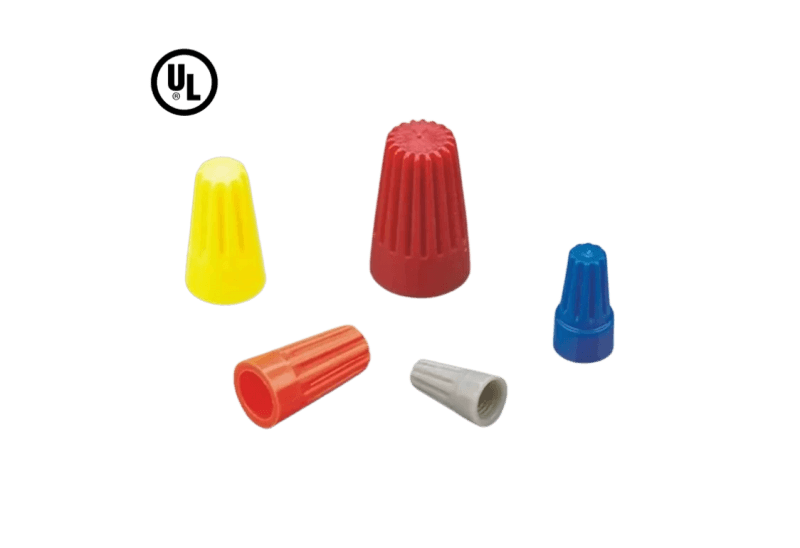

KSS — Wire Connectors

KSS — Tubes

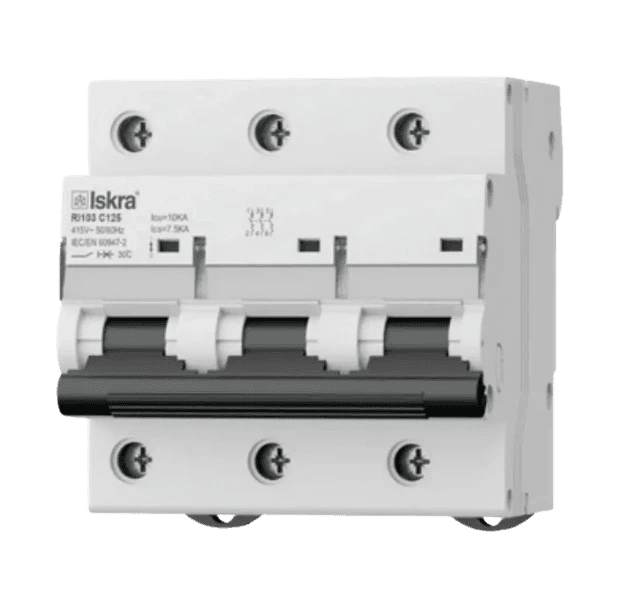

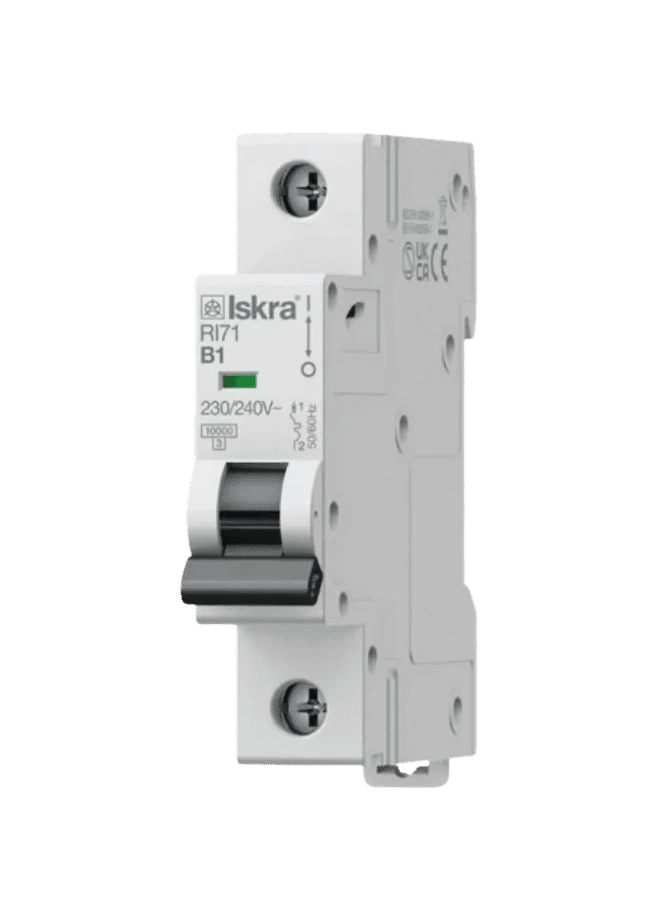

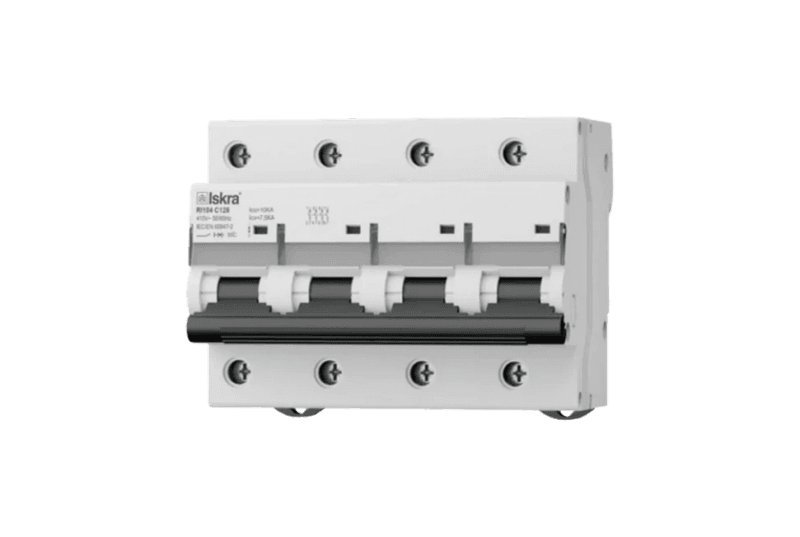

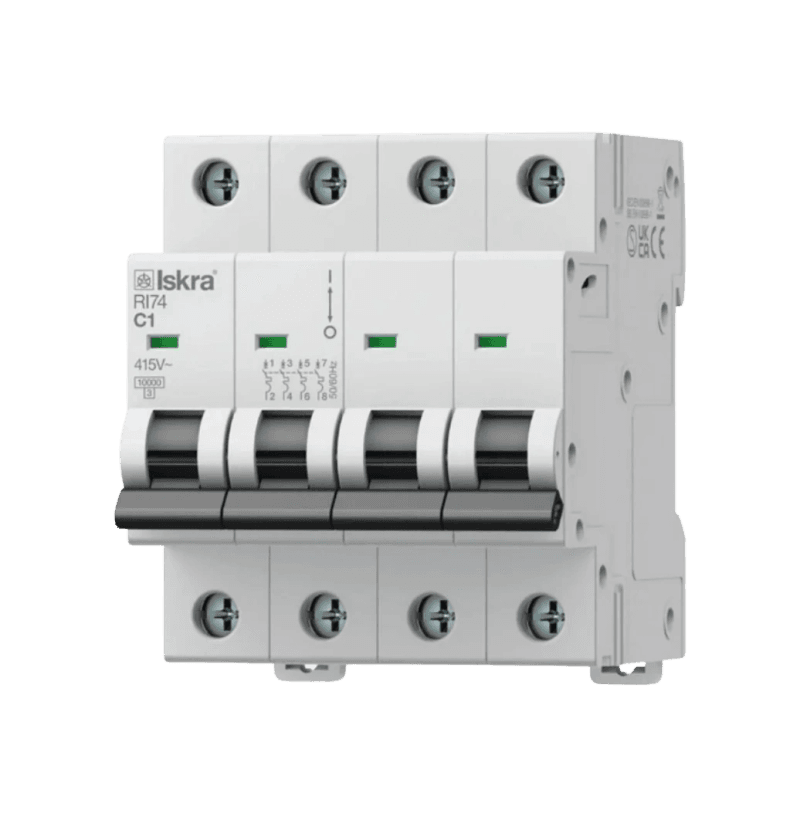

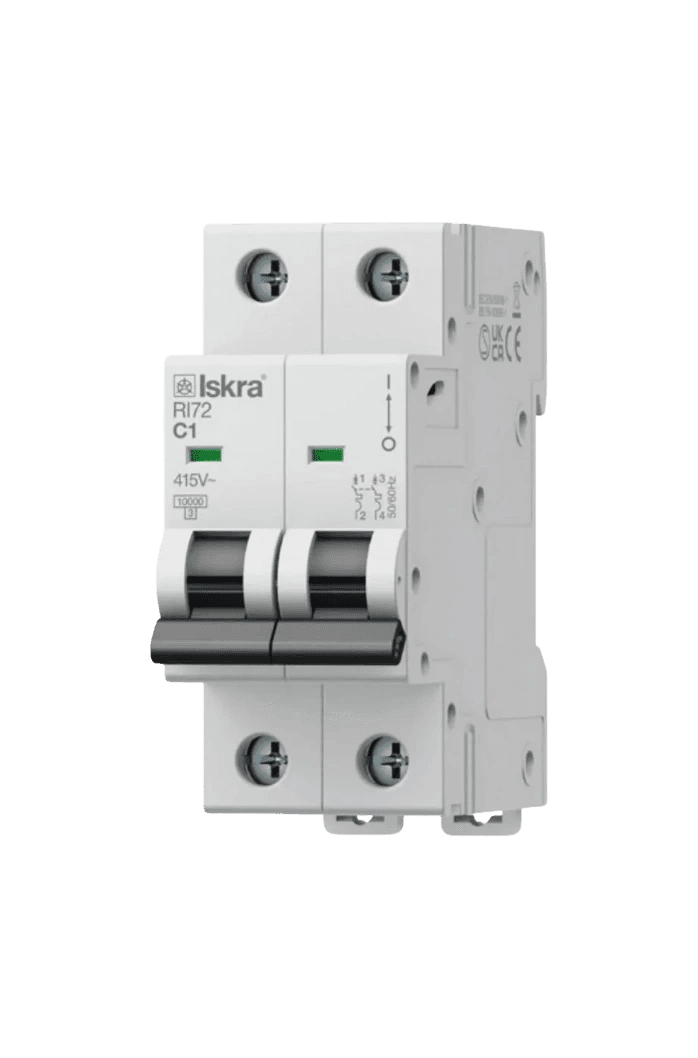

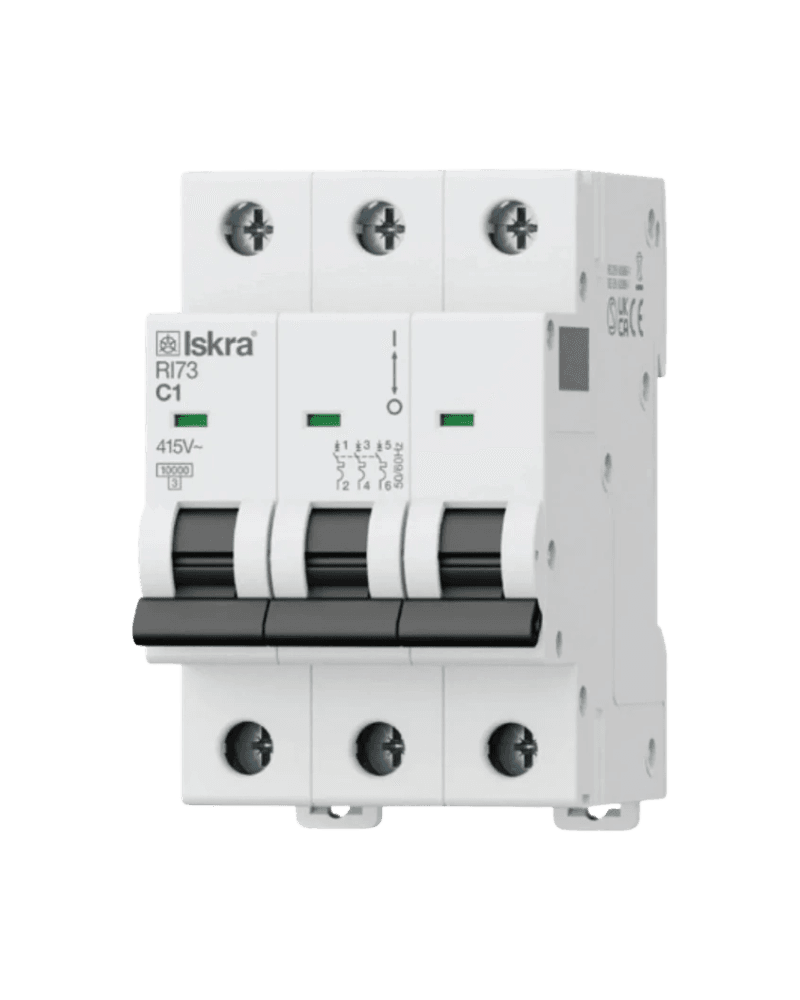

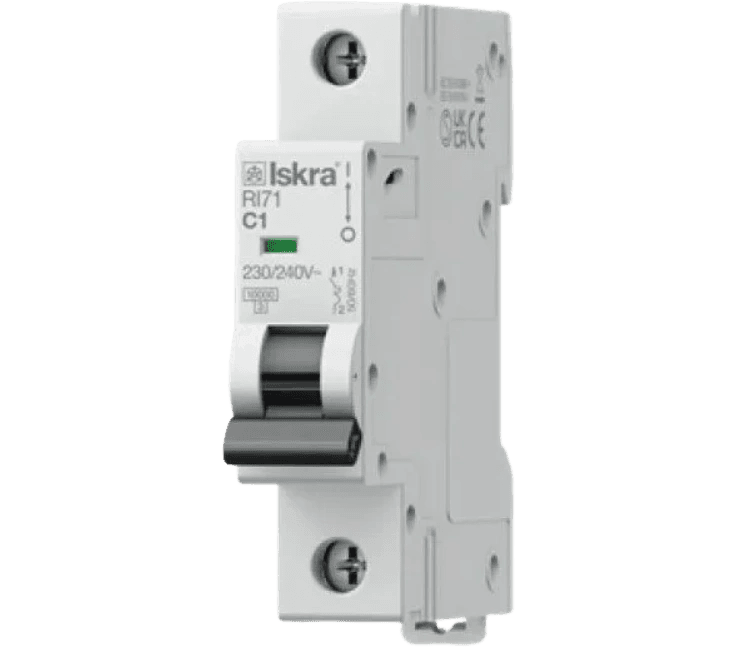

Iskra — Miniature Circuit Breakers

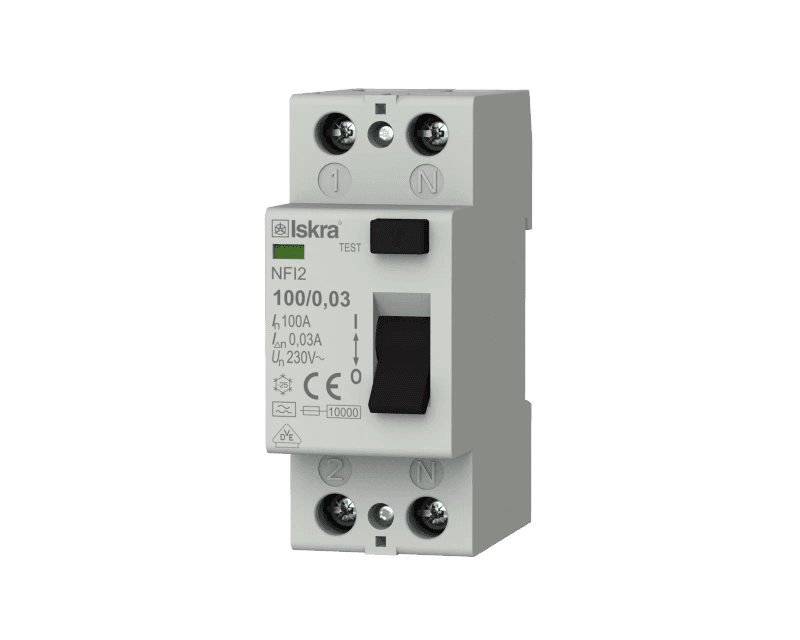

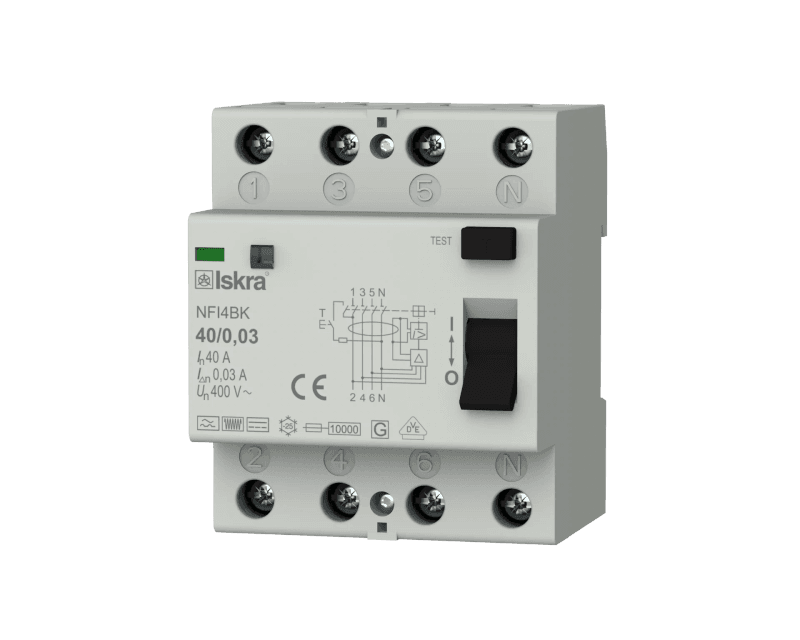

Iskra — Residual Current Circuit Breakers

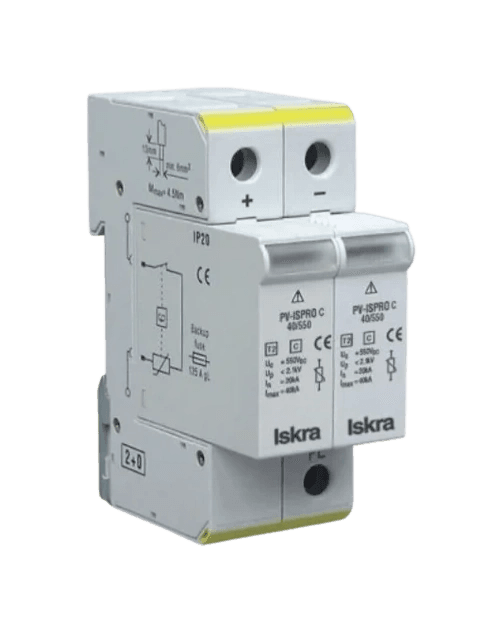

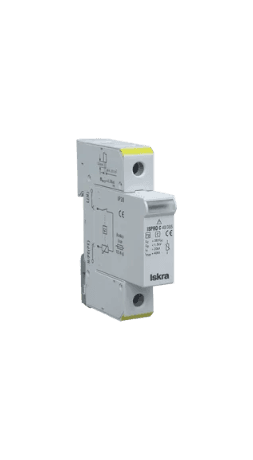

Iskra — Overvoltage Protection

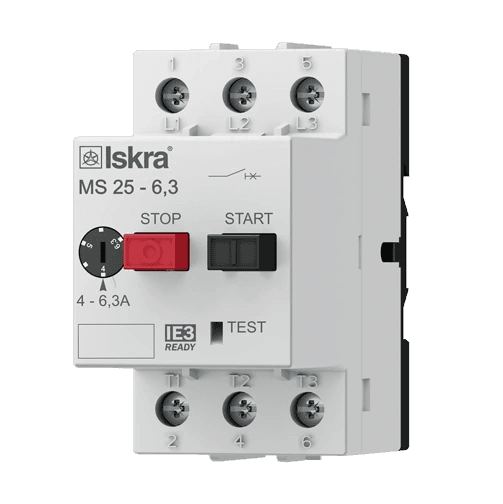

Iskra — Motor Protection Circuit Breakers

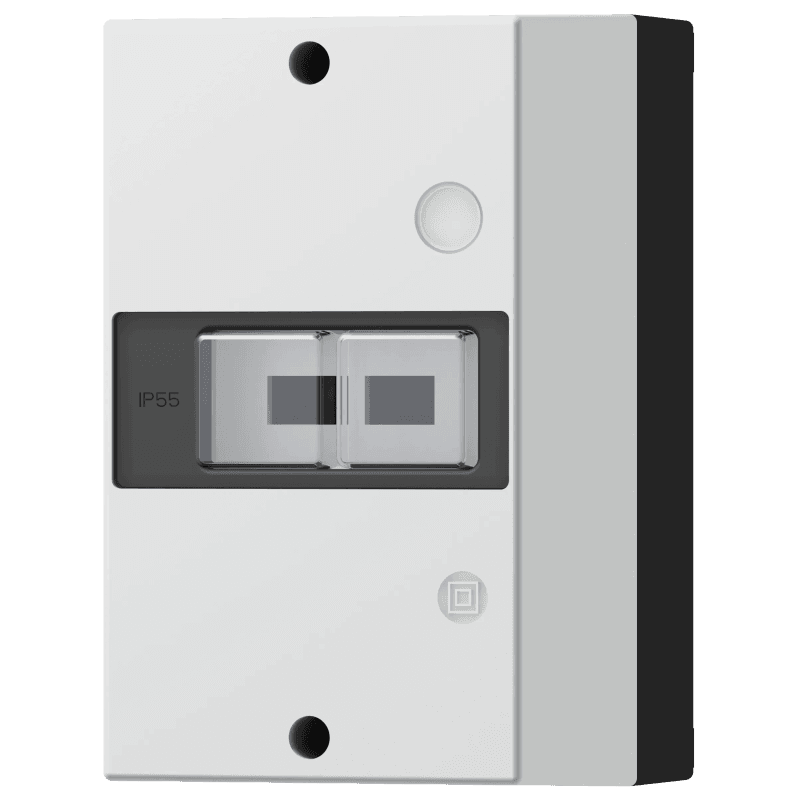

Iskra — Enclosures

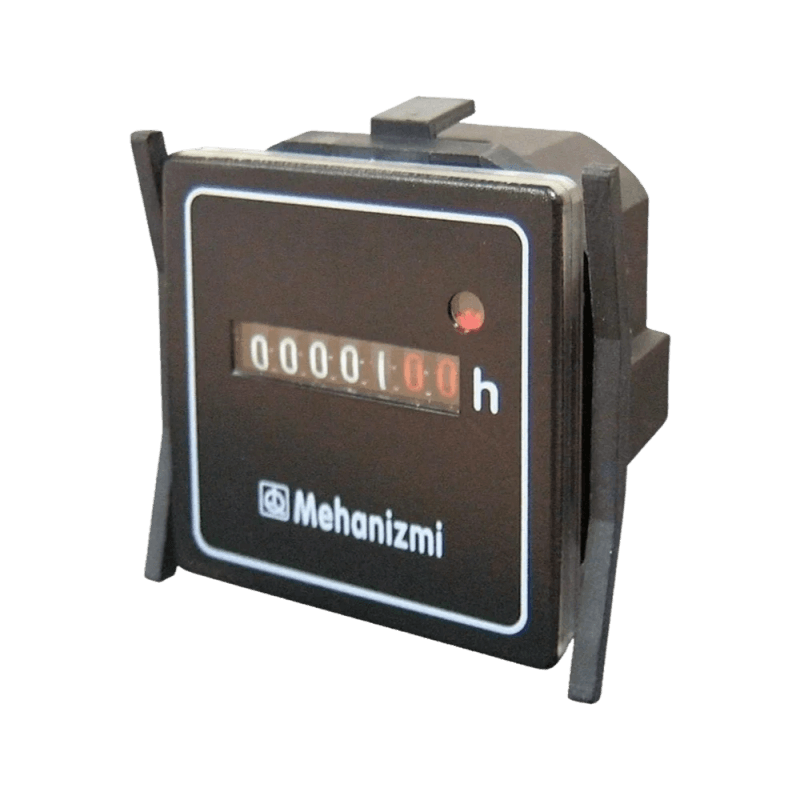

Iskra — Hour Meters

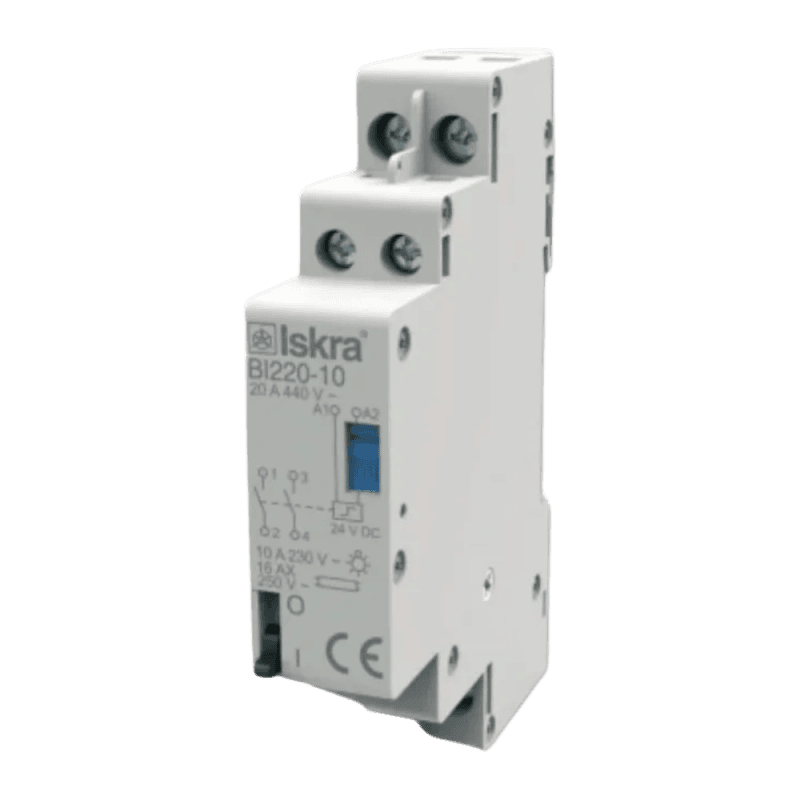

Iskra — Bistable Switch

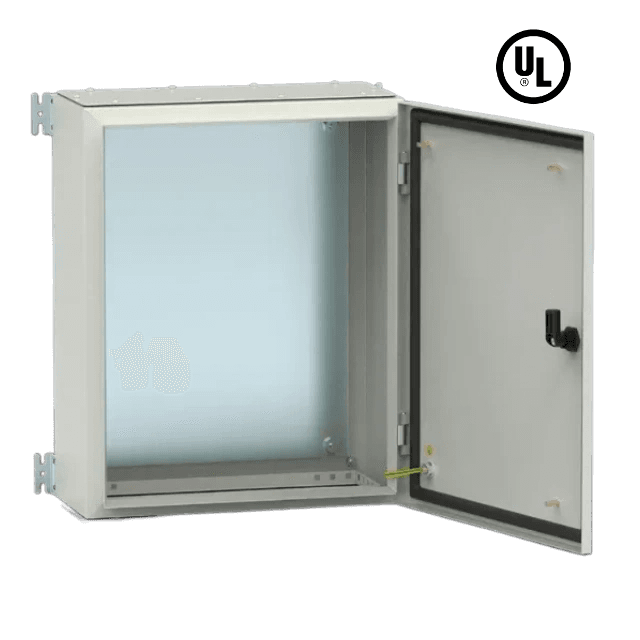

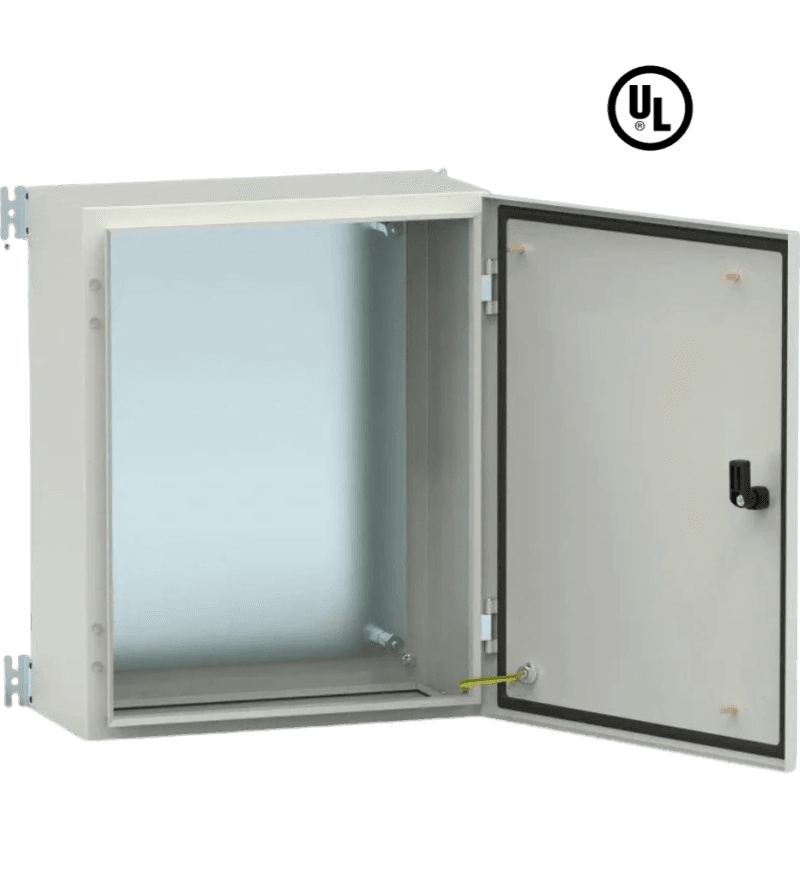

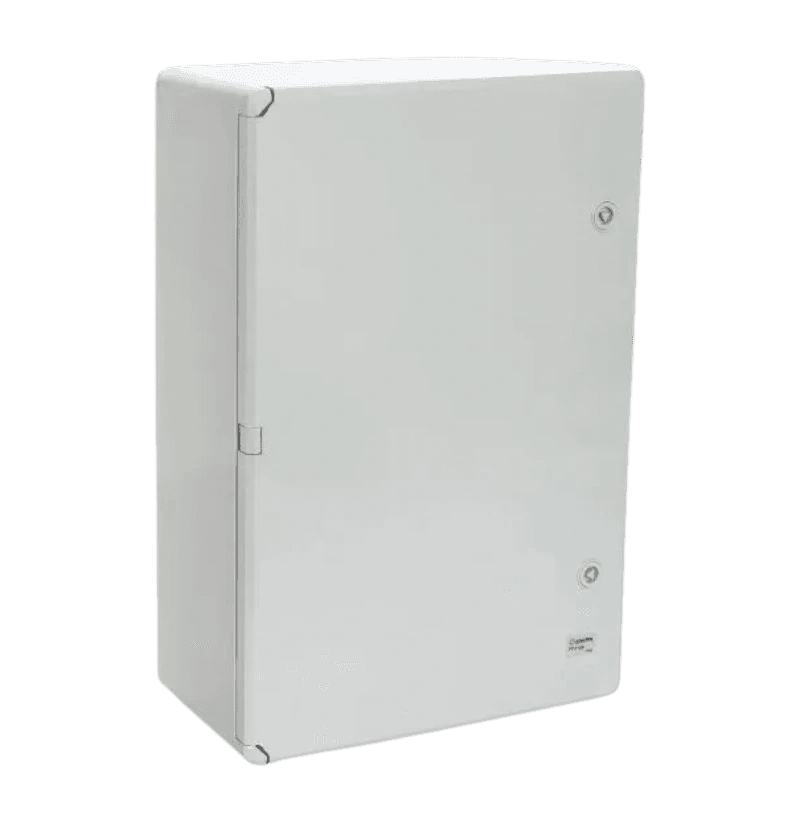

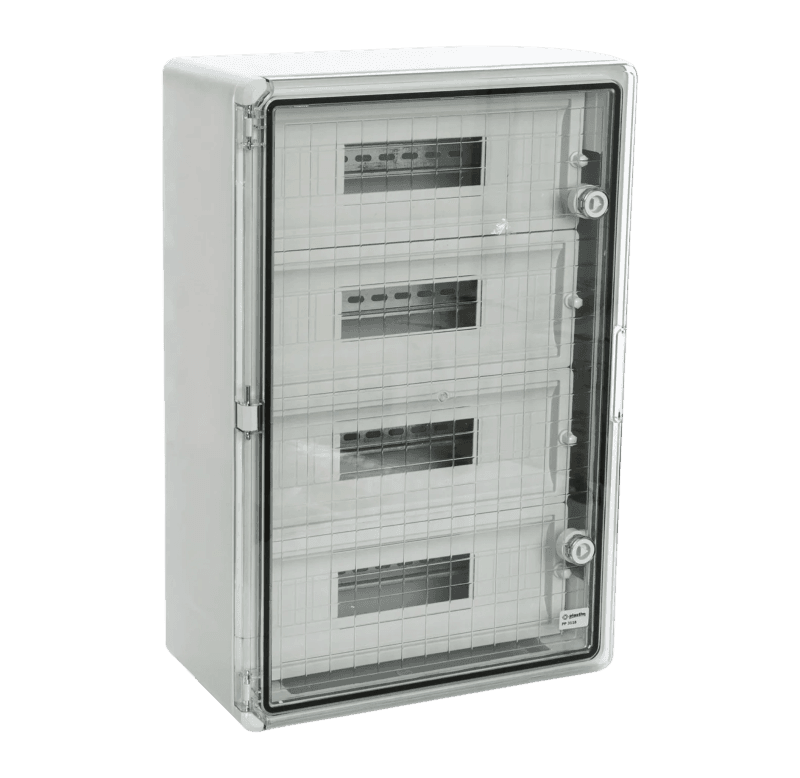

Tempa Pano — Wall Mounted Enclosures

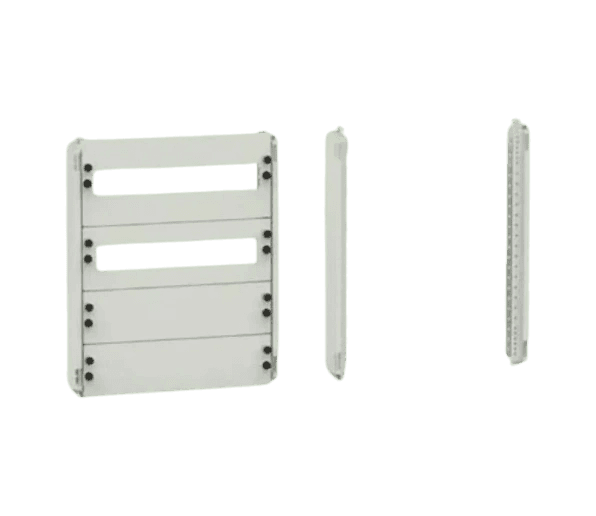

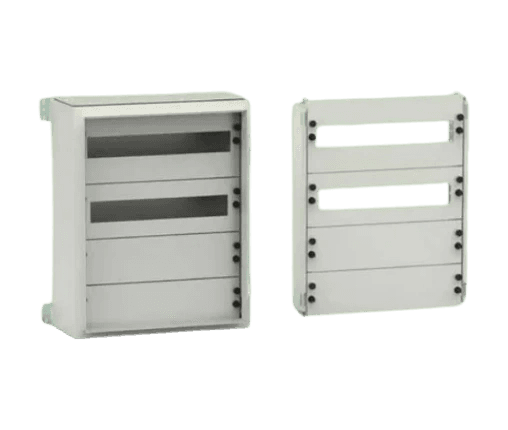

Tempa Pano — Cover Plates

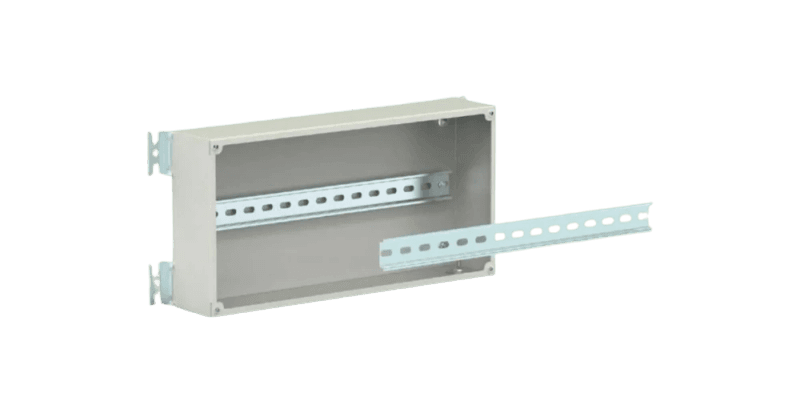

Tempa Pano — Din Rails

Tempa Pano — Fan Filters

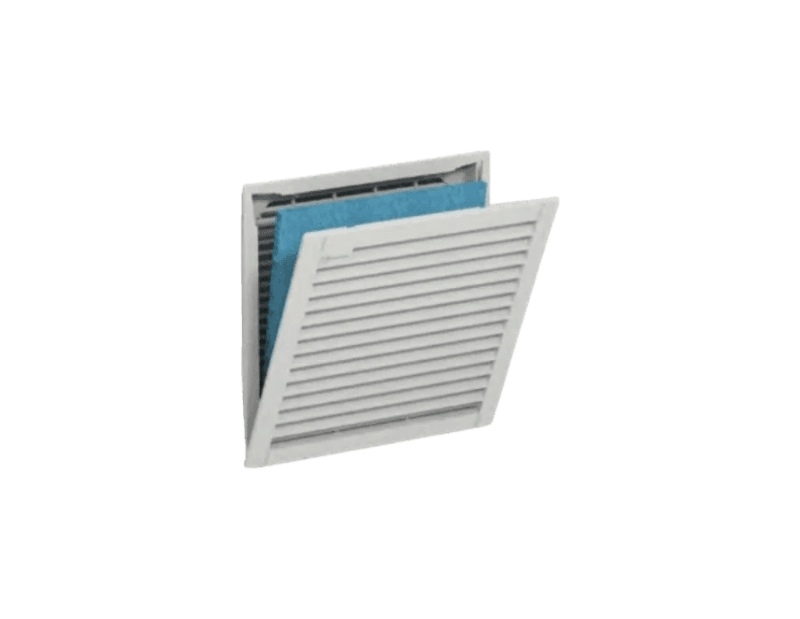

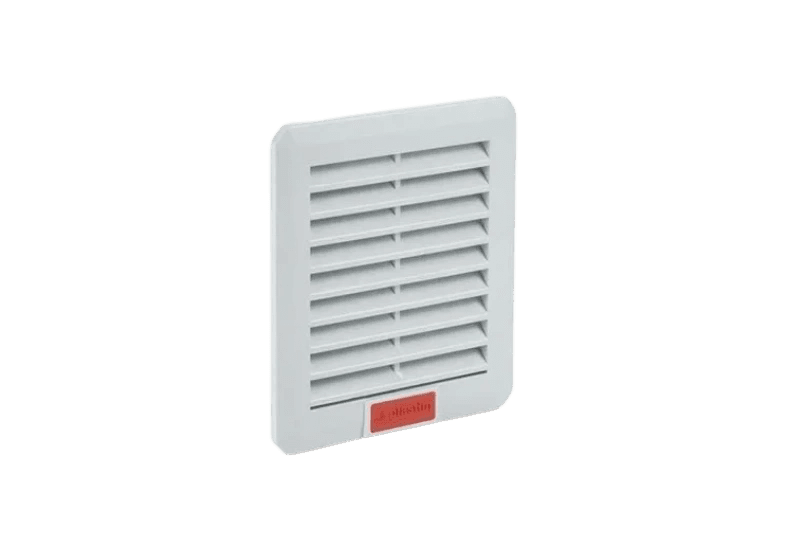

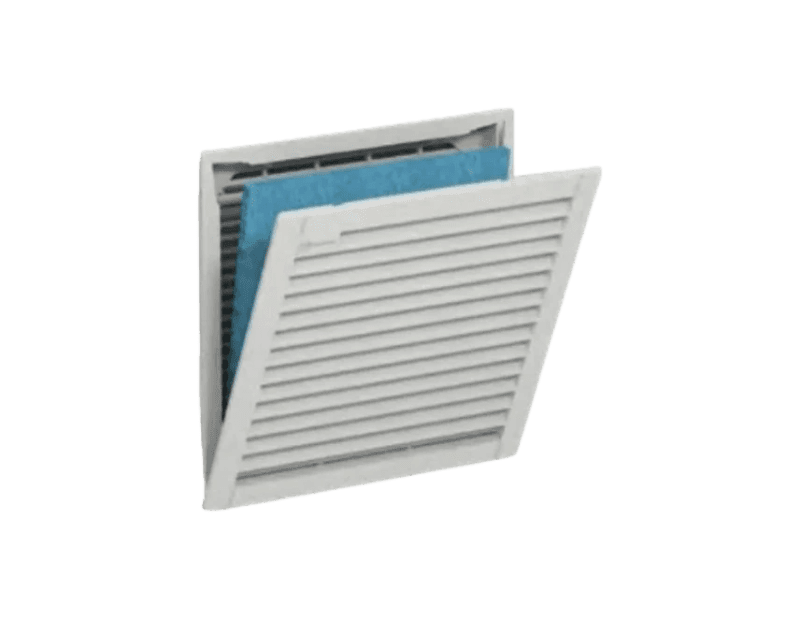

Tempa Pano — Filters

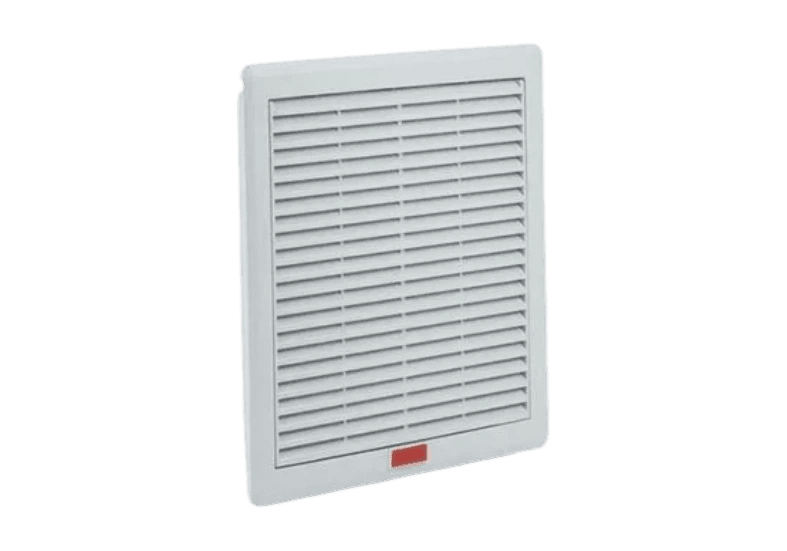

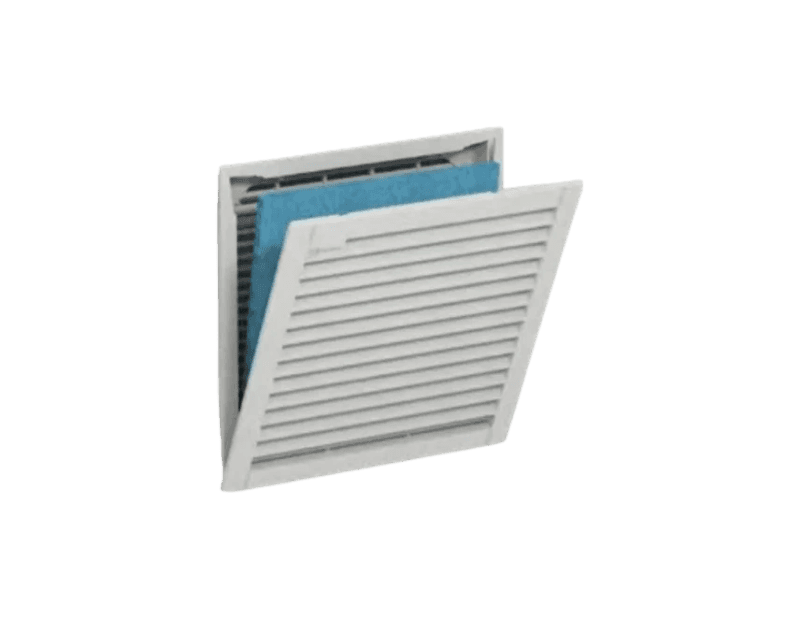

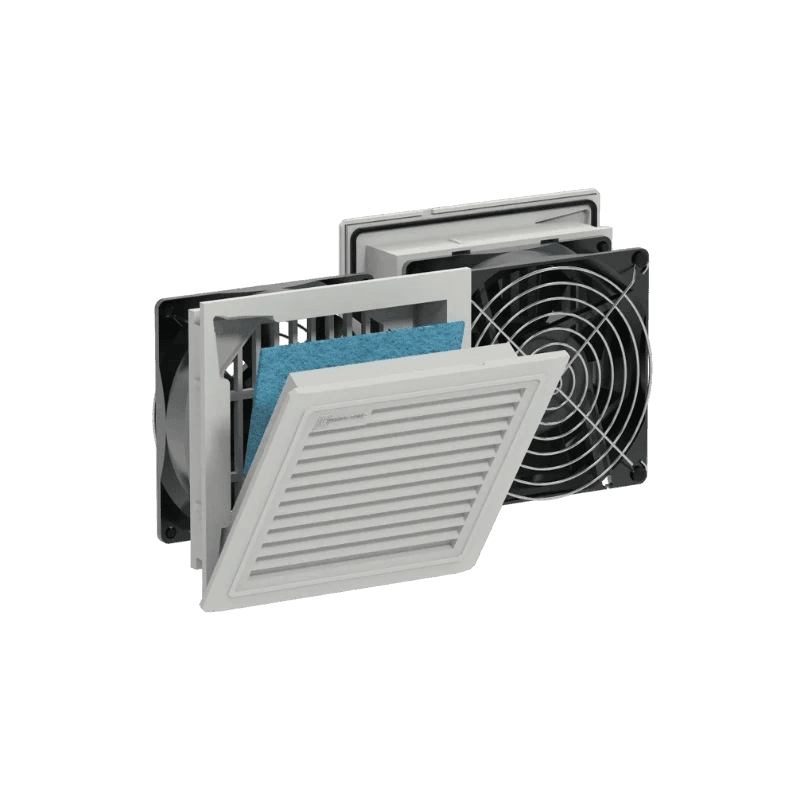

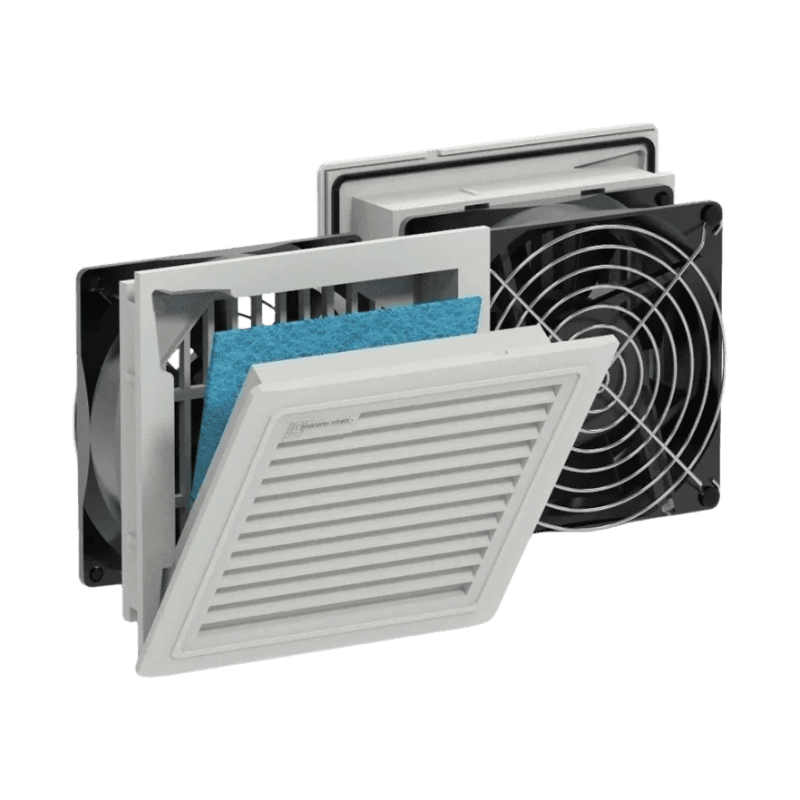

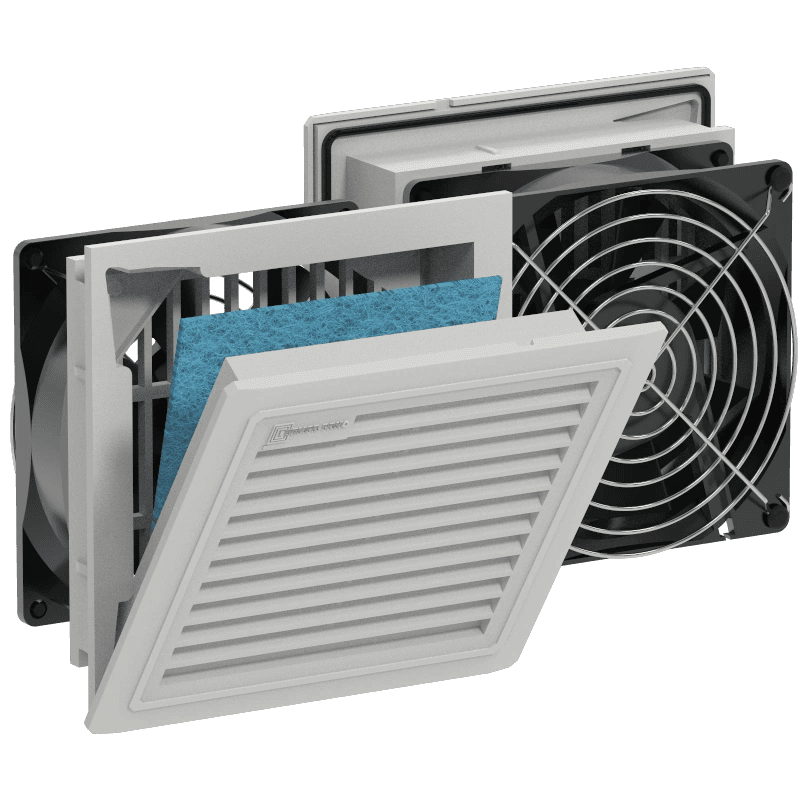

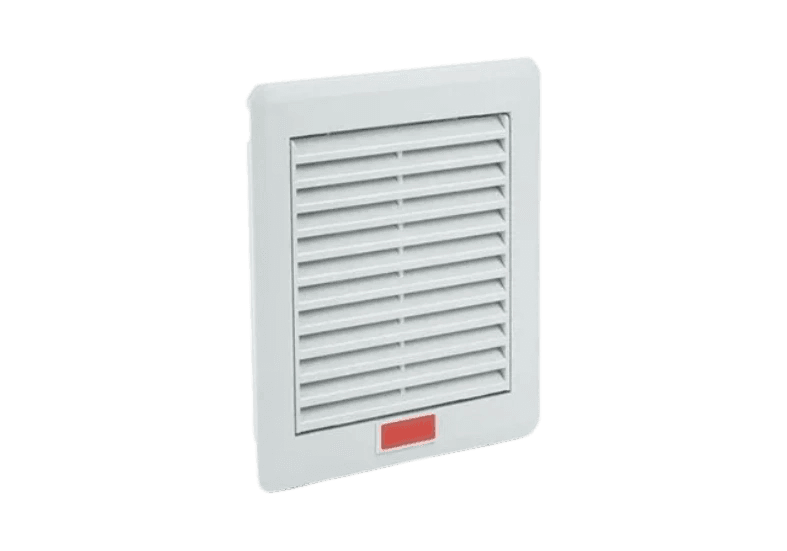

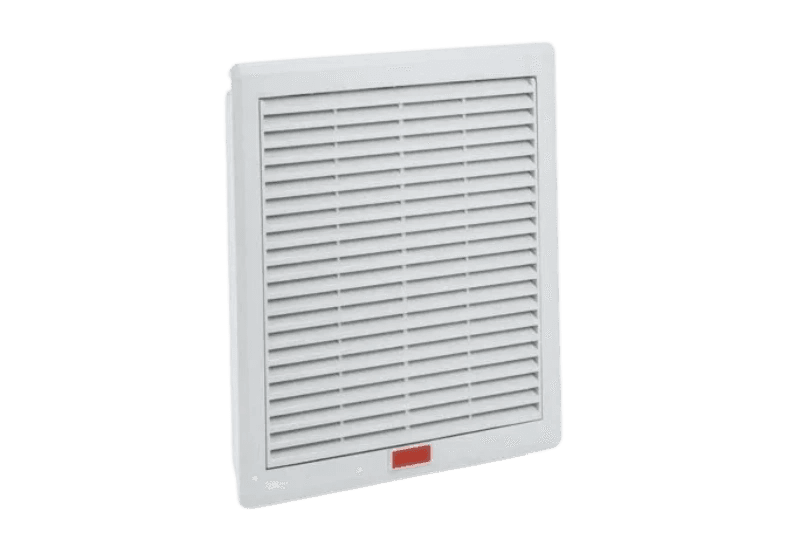

Plastim — Filter Fans

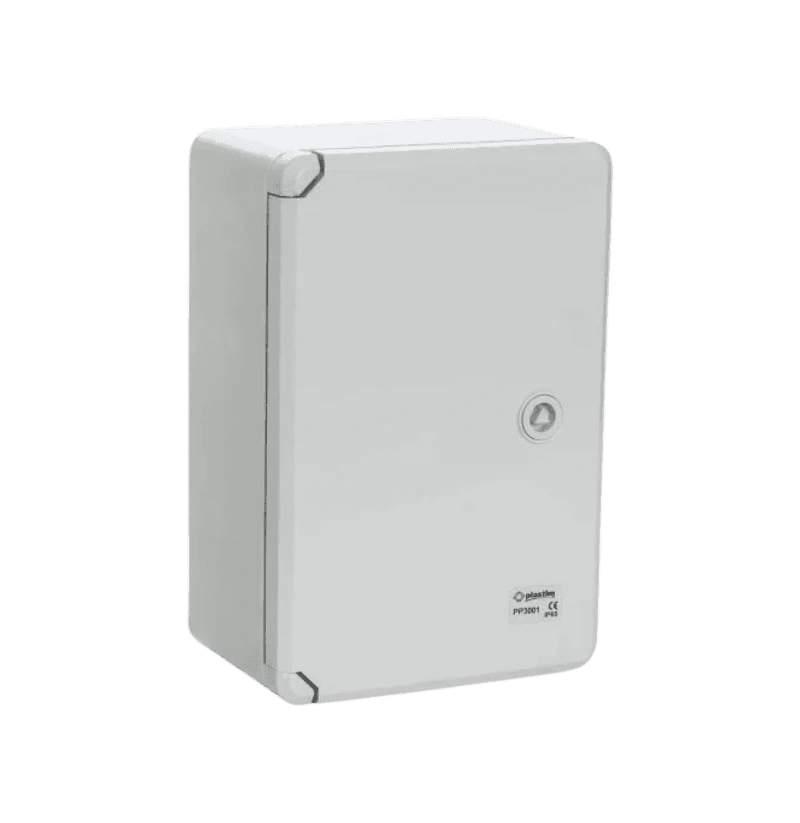

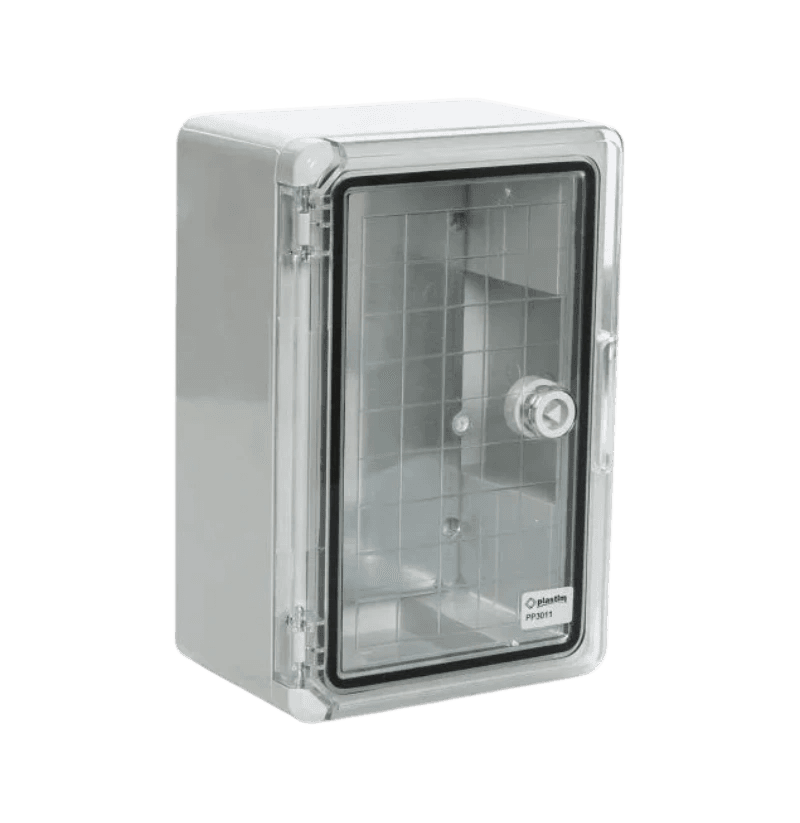

Plastim — Distribution Boards

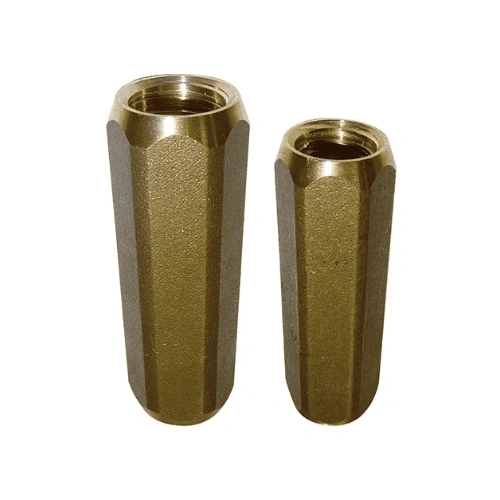

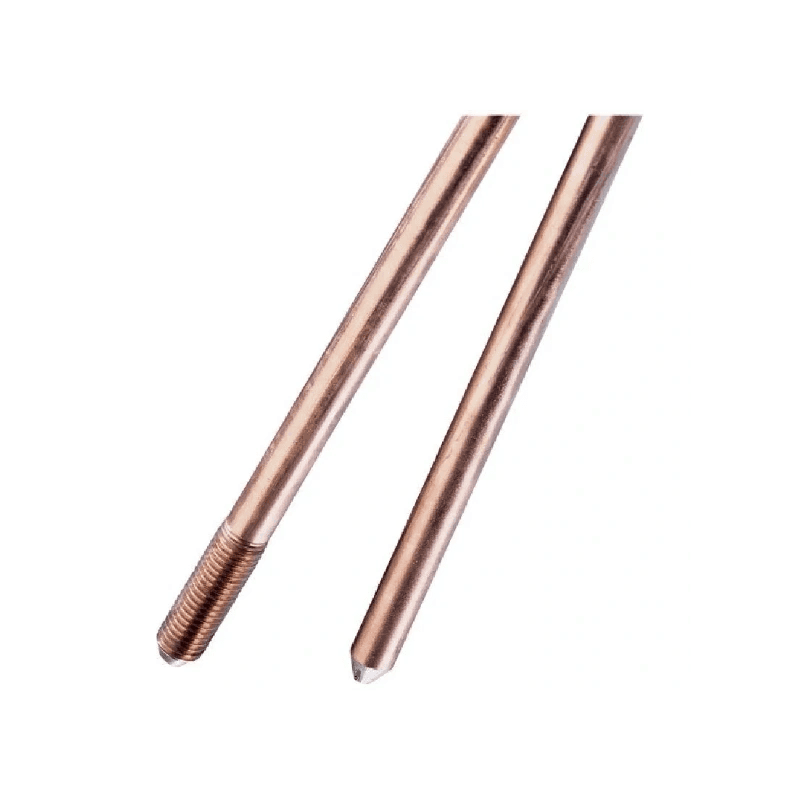

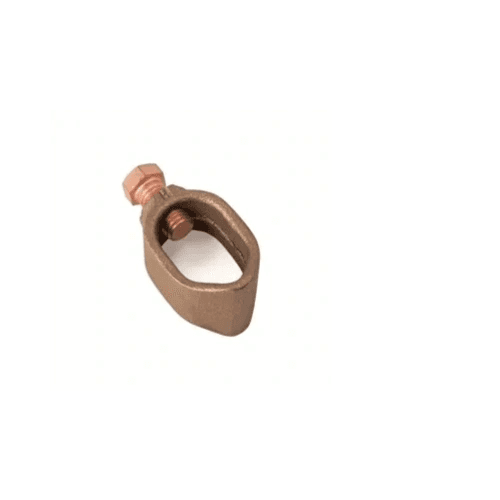

Gemini — Earthing & Grounding

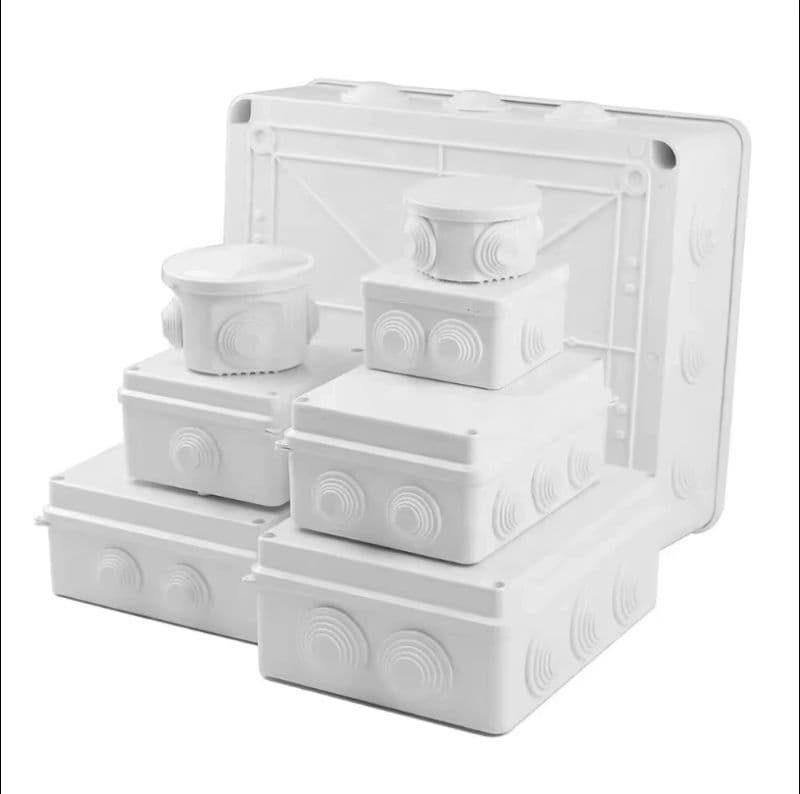

4C Electric — Terminal Boxes

GLOW — Ranges
