30909 ERLAIN
Earthing Equipment
Description

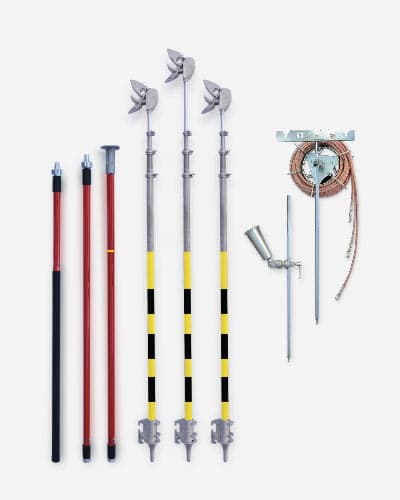

Potential drop Earthing equipment for overhead lines, easy to use for only one operator that besides facilitates the verification of absence of tension with a voltage detector (not included). Thanks to the operation sections of the metal pole, it has multiple length adjustments. According to IEC 61230 standard. Composed of: 3 telescopic metal poles composed of 3 parts with self-locking fixed contact clamp for conductors with diameter between 3 and 22 mm. 1 insulating fiberglass pole + Eproxy resin and polyurethane foam filled with 3 sections of 1.72 + 1.65 + 1.63 m; certified by the IEC 60855 standard. Total length: 5 m (has the option of using it without the middle section with a remaining total length of 3.4 m). 1 poles holder. 1 coil with 3 copper cables of 35 mm² section and 10 m length. 2 galvanized steel earthing rod with hexagonal section of 1 m. 1 insulating pole support. 1 carrying bag.
Specifications
- Note
- the maximum tightening torque for the reel is 15Nm
Manufacturer references
- 660400
- 660405
